1000W-3000W 3015 Fiber Laser Cutter Iron Carbon Stainless Steel Sheet Metal Fabrication CNC Cutting Machine for Automotive Manufacturing Advertising Industry

Product Description

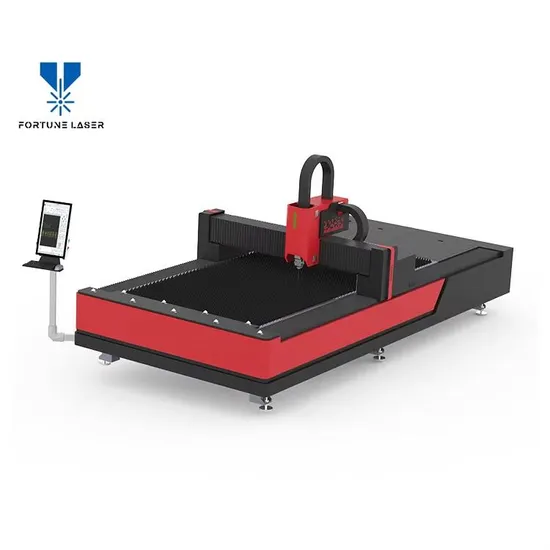

Fortune Laser 1000W 1500W 2000W 3000W Sheet Metal Fiber Laser Cutting Machine


Machine Characters
Servo dual-drive gantry structure: Bridge gantry structure, rack rail drive, the use of centralized lubrication device, easy maintenance;
Stable and practical: Reinforced welding bed, high-temperature tempering treatment vibration to eliminate stress, machine tool deformation can be controlled at ± 0.02mm;
Industrial aesthetics design: Export standards in Europe and America, the appearance of aesthetic design, simple atmosphere;
The operation is simple and easy to use: More than 20000 users, global technology-leading CNC laser cutting system, the flexible operation is simple, has the function of laser power adjustment, to ensure the quality of cutting, the operation is simple and convenient;
High-quality cutting: High-precision anti-collision professional laser cutting head, to ensure the best cutting effect;
Efficient material: Used in the standard specifications of metal sheet cutting, saving time and material;
Fiber laser: Use Maxphotonics laser(Other brands laser are optional), stable and reliable power in the domestic top brand, performance guaranteed;

Machine configuration
Model	Fiber Laser Cutting Machine FL-S Series
Working Area	3000mm*1500mm
Laser source	1000w Max
CNC Cutting System	Cypcut 1000 operating system
Laser head	OSPRI Manual focus(Auto-focus for option)
Machine bed	Fortune Laser
X/Y axis gear rack	Fortune Laser
Precision linear guide	ROUST
Motor Drive	Japan Yaskawa Servo motor (X750W/Y750W/Z400W)
Electronic components	France Schnei der
Reducer system	PHILANDE
Pneumatic components	Japan SMC
Machine bed accessories	Fortune Laser
Water chiller	Hanli
Waste recycling equipment	Fortune Laser

Note: This machine configuration is only for your reference, many other brands for each part of the machines are optional based on your requirements and your budget. Please feel free to contact us for more details.
Machine Parts
Strong machine lathed bed
The lathed bed is after aging treatment: 1600ºChigh temperature heat treatment, 24 hours with furnace cooling and precise co2 protection welding, which ensures along-term stability and no deformation.
Aerospace-grade aluminum gantry
Aerospace-grade aluminum light quality, high speed, good dynamic response, fast acceleration.
Beam as a whole by the finite element analysis optimization of high rigidity, lightweight design, and durable.
OSPRI laser head
(1). Famous brand in China.
(2). Laser cutting head with high precision fiber laser dedicated anti-collision cutting head to ensure high cutting accuracy and cutting efficiency.
Cypcut control system
Cypcut controller is designed for sheet metal processing industry launched a full-featured open-loop control system.
Easy installation, easy adjustment, excellent performance, and complete solutions are popular fiber laser cutting machine control systems.
Laser Source- MAX 1000W
100,000 hours lifetime More stable and cost-efficient Free maintenance

Machine Parameters

Model	FL-S2015	FL-S3015	FL-S4020	FL-S6020
Working Area (L*W)	2000*1500mm	3000*1500mm	4000*2000mm	6000*2000mm
X/Y Axis Position Accuracy	±0.03mm/1000mm	±0.03mm/1000mm	±0.03mm/1000mm	±0.03mm/1000mm
X/Y Axis Repeat Position Accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Max Moving Speed	80000mm/min	80000mm/min	80000mm/min	80000mm/min
Max Acceleration	1.0g	1.0g	1.0g	1.0g
Max Loading Weight	600kg	800kg	1200kg	1500kg
Power Supply	AC380V/50Hz	AC380V/50Hz	AC380V/50Hz	AC380V/50Hz
Laser Source Power(Optional)	1kW/1.5kW/2kW/2.5kW/3kW/4kW/6kW/8kW/10kW/12kW/15kW/20kW

Applications
Suitable for processing metal sheets such as stainless steel, carbon steel, alloy steel, silicon steel, galvanized steel plate, nickel-titanium alloy, inconel, titanium alloy, etc.

---
