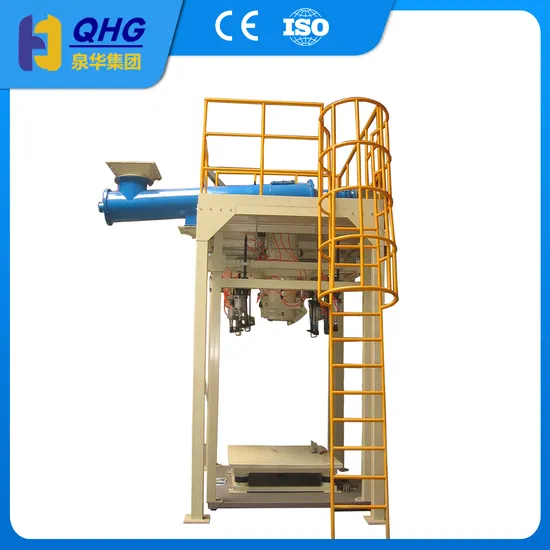

Versatile 500-2500kg Jumbo Bag Filler for Industrial Use

Product Description

Automatic Ton Bag Packing Machine/Bulk bag filling machine
Introduction for Bulk Bag Filling Machine in China:
Many dry mortar mix plant clients use the automatic ton bag packing machine in the line,Automatic Ton Bag Packing Machine Unit is widely used in packing powder and granular materials, mostly adopted by chemical industries, petroleum, metallurgy, mining, pharmaceuticals, etc.
Working Principle for Bulk Bag Filling Machine:
After the bag is clamped, the double butterfly valve cylinder works and opens at the same time. The material enters the packing bag. The sensor transmits the signal to the control system. The signal is processed and transformed into digital display in the weighing instrument. With the increase of the material in the bag, when the set value of rough flow is reached, the control system sends out signals, the rough flow cylinder moves, the rough flow is closed and the fine flow is displayed. Continue feeding, when the set weight is reached, the control system sends out a signal to control the cylinder of the fine flow to retract, close the fine flow, stop feeding, the control system signals the lifting cylinder, the cylinder extends, the packing bag drops, and falls smoothly on the pallet. At this time, the clamping cylinder loosens the opening of the packing bag, and at the same time, hangs the cylinder to work and packs. The bag sling is automatically decoupled. So far, complete the filling of the whole packaging bag.
Artificial bag -hanging and bagging-starting, feeding-weighing-closing of full scale valve -loosening of bag-holder -artificially ligating -decoupling -Transport
Technical Parameter for Ton bags filling machine:

Weighing scale	Packing speed	Packaging accuracy	Gas source	Electrical source	The total power	Vacuum aspiration	Size(LXWXH)
500--2500kg	2-3MIN/BAG	Static :0.03%FA.OIMLIII Grade	0.4~0.6MPa, 2M3/h	AC380V	5.5kw	Vacuum Percent:100-120mmHg	2180x3100x4000
		Dynamic :0.1 %				Vacuum Flow:10-12M3/Min

We could make according to your bags size .
Feature for Bulk Bags Filling Machine:
1, Automatic PLC control, bag clamping and blowing, feeding and metering, exhausting and finished products conveying. Just need workers to feed on the bag.
2, Large production with different feeding and metering type for powder and granular material.
3, Advanced weighing system ensures fast speed and high accuracy.
4, Simple design for customers to realize easy operation.
Our advantage:
1.Standard Workshop and precision production device.
2. Competitive price can meet all kinds requirement
3. Quality Guarantee is at least 1 year. Our machine could use7-10 years .
4. Any customized packing can be provided
Why Choose Us?
1. Quality Price
We have been in this field over 20 years, so we have great advantage in good quality with competitive price.
2. Test
Top production test equipment and production equipment to guarantee the product quality.
Our product can totally meet SGS, BV, CIQ etc. test.
3.Delivery Time
15-20days production time after getting advance payment or LC.
4.We provide profeesional service and quality guarantee ,so our machine could use 8-10 years . After Sales Service 1. one year guarantee for whole machine except for wear parts;
2.24 hours technical support by email;
3. calling service;
4.user manual available:
5. reminding for the service life of the wearing parts;
6.installation guide for clients from both China and abroad:
7.maintenance and replacement service;
8. whole process training and guidance from ou technicians. High quality of afer-sales service symbolizes our brand and ability. we pursue not only good qualityproducts, but also best after sales service. Your satisfaction is our final purpose.
OUR WORKSHOP
OUR CERTIFICATE
Company Profile
QUAN HUA Group headquartered is located in Jinan, the city of springs, it is a large-scale enterprise integrating production, scientific research, sales, import and export trade. The company was established in 2003. Our factory covers an area of 200,000 square meters and a building area of 120,000 square meters, with 300 employees, It is now constructing an overall framework ,the major industries is mainly of construction machinery supplemented are installation and construction.We also import and export chemical material for our different clients in the world wide.
Shandong Quanhua Intelligent Equipment Co.,Ltd. is export construction company,the construction machinery includes dry mixed mortar production line and equipment, putty powder production line, tile adhesive mortar mixing plant, ready mix plaster plant, really stone paint plant, bucket elevator and conveyor machine, dust collector machine ,packaging equipment machine, automatic wall plastering machine, sprayer machine, etc..
QUANHUA company has got the SGS,ISO9001,CE etc.international certificate. So the machine's quality and service is best .
With superb workmanship, advanced technology and high-quality services, the QUAN HUA brand are popular in the industry and exported to Malaysia, Vietnam, Russia, Kazakhstan, Uzbekistan, Mongolia, Qatar, Algeria, Egypt and other countries. Has won the customer's support and trust.
In the future, Hoping that QUANHUA brand will provide best quality and advanced products and services for customers around the world . Welcome friends from all over the world to visit my factory and give us more chose to cooperate with you .
Packaging & Shipping
FAQ
1. What is your acceptable payment term?
L/C,T/T,Western Union.
2: How about the validity of the offer?
Usually our offer is valid for 2 weeks.However, validity might vary between different products.
4: What documents you provide?
Usually, we provide Commerical Invoice, Packing List, Bill of lading, CO. Please let us know if you need additional documents.
5: What is loading port?
Usually loading port is Qingdao port, besides, Shanghai Port, Lianyungang Port is totally no problem for us, and also we can ship from other ports as your requirement .
Any interested ,pls don't hesitate to contact us ,our team will give you our best attention asap .

---
