Manual Double Column Gantry Type Moving Milling Machine (portal fresadora)

Product Description

One-stop Shopping
Please click on the picture to view the product category you are interested in

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

Product Description

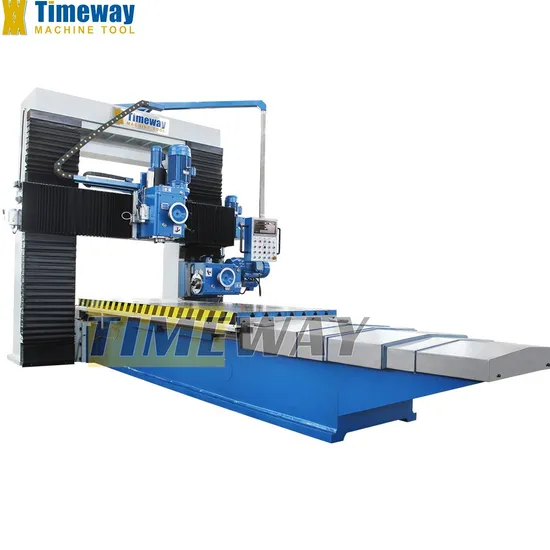

gantry milling machine
Bed, columns and travel tracks form a solid cast-iron frame structure for high rigidity under hard machining conditions and high table loads.
The gantry construction is fully integrated into the machine frame for maximum rigidity.
The traverse height is adjustable, ensuring high rigidity even with flat workpieces, since the throat size can be minimized.
Rigid guides with ground surfaces support the table across the entire travel distance to ensure constant high geometric accuracy.
Infinitely variable feed on X.
Main spindle gears with 6 steps for vertical and horizontal operation.
Including weight balancing system for easy movement and precise positioning of the horizontal spindle head.
All guideways are protected by telescoping covers or bellows.
The control panel is mounted on a long arm, giving the user maximum positioning flexibility.
Automatic central lubrication is included.

SPECIFICATION	UNIT	GM800	GM1000	GM1250	GM1400
Table size(length)	mm	2000/3000	2000/3000/4000	2000/3000/4000	2000/3000/4000
Table size(width)	mm	800	1000	1250	1400
Longitudinal travel	mm	2000/3000	2000/3000/4000	2000/3000/4000	2000/3000/4000
Max. width of workpiece	mm	1100	1300	1400	1800
Max. height of workpiece	mm	800	1000	1000/1200	1000/1200
Distance between columns	mm	1140	1440	1600	1920
Table feed speed	mm/min	infinite variable	20-360	25-450	25-450
Table rapid feed speed	mm/min	1400	1050	1300	1300
Spindle taper	-	ISO50	ISO50	ISO50	ISO50
Spindle speed	rpm	82-505	82-505	82-505	82-505
Mill head swivel angle	°	±35°	±35°	±35°	±35°
Vertical mill head feed speed	mm/min	65/320/890	65/320/890	65/320/890	65/320/890
Slde mill head feed speed	mm/min	-	50/265/730	50/265/730	50/265/730
Main motor power	kw	7.5	7.5	7.5	7.5
Table feed motor power	kw	4	4/5.5/7.5	5.5/7.5/7.5	5.5/7.5/7.5
Machine length	mm	4000/6000	4550/7000/9000	5000/7000/9000	5000/7000/9000
Machine width	mm	3000	3200	3550	3550
Machine height	mm	2300	2550	2950/3150	2950/3150

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
