Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Transport Package
Export Packaging
Production Capacity
1000 Pieces/Year
Product Description
Product Description
Introducing the ME 60.9 Excavator-a paragon of engineering excellence that combines a compact structure with swift operational speeds and a user-centric design. Powered by the esteemed Original Japanese Yanmar engine, it boasts an automatic idle function to ensure minimal energy consumption. Its load-sensing hydraulic system allows for precision control across various executive elements, delivering exceptional controllability and superior work efficiency.
Product Parameters
| ME60.9 |
| Weight (T) | 5.85 |
| Bucket capacity (m3) | 0.22 |
| engine model | YANMAR 4TNV94L |
| Power (kw/r/min) | 36.2/2100 |
| Fuel tank volume (L) | 100 |
| Walking speed (km/h) | 4.2/2.2 |
| Rotation speed (r/min) | 9.5 |
| Gradeability(%) | 70 |
| Bucket Digging Force (KN) ISO | 39 |
| Ground specific pressure (KPa) | 33.5 |
| Hydraulic pump model | HP5V76 |
| Maximum flow (L/min) | 160 |
| Working pressure (MPa) | 28 |
| Hydraulic tank volume (L) | 80 |
| A-total length (mm) | 5960 |
| B-total width (mm) | 1960 |
| C-Total height (top of boom) (mm) | 1995 |
| D-total height (driving roof) (mm) | 2690 |
| E-Counterweight Ground Clearance (mm) | 700 |
| F-minimum ground clearance (mm) | 360 |
| G-tail turning radius (mm) | 1700 |
| H-track grounding length (mm) | 2000 |
| J-track length (mm) | 2560 |
| K-gauge (mm) | 1560 |
| L-track width (mm) | 1960 |
| M-track shoe width (mm) | 400 |
| N-turntable width (mm) | 1906 |
| O-Maximum excavation height (mm) | 5750 |
| P-Maximum unloading height (mm) | 3980 |
| Q-Maximum excavation depth (mm) | 3860 |
| R-Maximum vertical wall excavation depth (mm) | 3040 |
| S-Maximum excavation depth when excavating 2.5m horizontal plane (mm) | 3440 |
| T-Maximum excavation distance | 6170 |
| U-Maximum excavation distance at ground level (mm) | 6045 |
| V-minimum turning radius (mm) | 2380 |
| W-Maximum height at minimum turning radius (mm) | 4395 |
| X-distance from the center of rotation to the rear end (mm) | 1700 |
| Z-weight height (mm) | 1685(Hood) |
| A1-ground length (when transported) (mm) | 3370 |
| Stick length (mm) | 1630 |
| Boom length (mm) | 3000 |

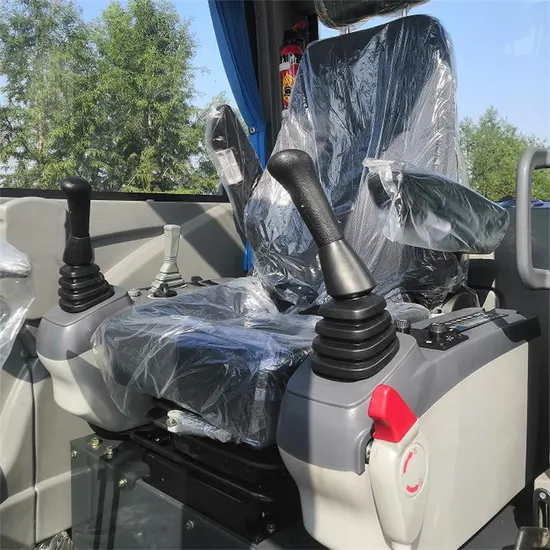

Detailed Photos
Packaging & Shipping
For the complete machine shipment, our efficient packaging solution can fit one unit in a small cabinet, which requires disassembly of the forearm and bucket. Alternatively, a super high cabinet can accommodate four units with the disassembly of the working device. Two complete machines can be securely transported in a 40-foot ultra-high cabinet, optimizing space and ensuring safe delivery.
Company Profile
Jining Maxpower Machinery Co., Ltd. Led by pioneers with over 30 years of rich expertise in the design, manufacturing, and sales of construction machinery, the Maxpower team has crafted a legacy since the 1990s, originating from collaboration with internationally renowned companies in China. In 2004, the visionary team established their own path, expanding from mini to large mining excavators. By 2015, they formed Jining Maxpower Construction Machinery Company, innovating products like rotary drilling rigs, piledrivers, and material handling machinery. As industry leaders, we confidently offer wheel loaders, bulldozers, and wheel excavators, serving a global clientele. Through the years, Maxpower has proudly exported its diverse range of machinery to over 30 countries worldwide.
Situated in the bustling heart of the domestic construction machinery manufacturing base-Jining High-tech Zone-our company thrives with exceptional manufacturing capabilities, a wealth of supporting resources, and a skilled workforce that drives innovation and excellence.
With a commitment to refined production management and rigorous quality control systems, our products promise unparalleled reliability and cost-effectiveness. Our relentless pursuit of high efficiency and energy-saving solutions, coupled with a focus on innovation, ensures we stay at the forefront of global technological advancements. By forging deep technical partnerships with internationally renowned enterprises, we deliver products that are both cutting-edge and superior in quality.
After Sales Service
Maxpower's dedication to delivering high-quality products and exceptional services has propelled the Maxpower brand into the forefront of the industry, ensuring widespread popularity across the nation. Our products are proudly exported to 50 countries and regions, spanning Oceania, the Middle East, Africa, Eastern Europe, Southeast Asia, and South America, cementing our global presence and reputation.
FAQ
Q: How long is the machine warranty time?
A: One year.
Q: Are you original manufacturer?
A: Yes. We are manufacturer of construction machines.
Q: What is the terms of payment?
A: :Normally, we accept 30% advance, 70% should be paid after finished the machine, L/C at sight.
Q: What is the delivery time ?
A: Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok ,then send to port.
Q: How should we do if the machine broken ?
A: You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q: How should we do if parts are broken ?
A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air.
Q: Can the machine use the trademark of our own company?
A: Yes ,of course.
>>
