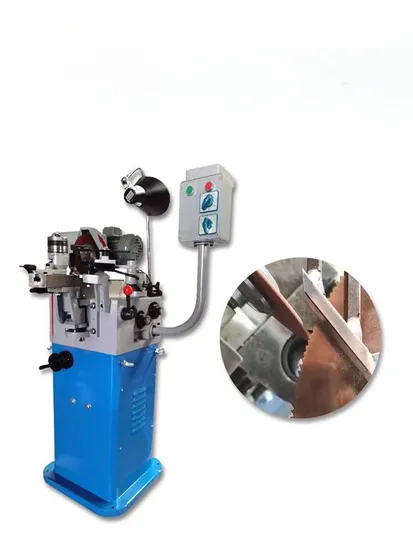

HSS Saw Blade Teeth Sharpening Machine

Product Description

Product Description
1.Machine is specialized for new saw blade tooth forming and sharpening, the cutting Angle, tooth shape, depth of teeth, and the ability to grind sharp saw blades can be made according to different chip requirements.
2.Available for sharpening different size and thickness of saw blade.
3.With movable grinding machine head to suit sharpening different thickness of saw blade. To change the cutting angle ,saw tooth type .according to the different requirements of tooth depth.the chip can easily grinding out a shape blade.
4.Sharpening feeding speed is adjustable.
5.The head of machine can be adjust up and down. It can grinding and chamfering the saw blade without changing the grinding wheel.
6.Good mechanical parts ensure machine runs in high stability.
7.The operation is simple,easy to learn,can let the novice to become professional and technical personnel in a relatively short period of time.
8.The grinding tooth saw blade material :HSS high speed steel,Mn of manganese steel.
9.Grinding various teeth.(The right gear, circular arc tooth,triangular teeth,high and low gear

Product Parameters

No	Item	Data
1	name	planer blade sharpening machine
2	Diameter of blade	50-450mm
3	Max distance of the tooth	Max.25mm
4	Max depth of the tooth	Max.8mm
5	Degree	-5°-30°
6	Feeding speed	45-180teeth/min
7	Diameter of the grinding wheel	Φ70-150mm
8	Speed of the grinding wheel	4200RPM
9	Driving motor	1/2HP
10	Weight	130kg
