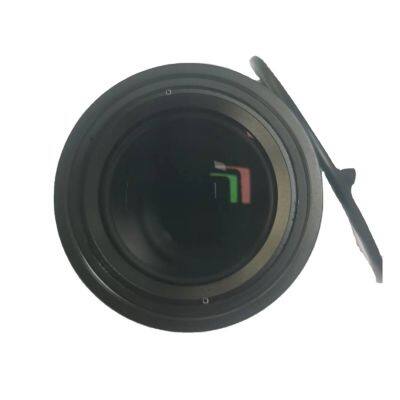

16-70mm 4X 8MP CS Mount Manual Iris Zoom Security Monitoring CCTV Lens

Product Details

Product Description

Product Description

Technical Parameters of Security Monitoring Lens
No.	Model No.	Pixel	Sensor size	FL (mm)	Interface	Iris	FNO	BFL(mm)	Working temperature
1	10-009-001	8MP	1"	12-36	C	Manual	F1.6	11.6	-20ºC~+60ºC
2	10-009-002	5MP	1/2.7"	2.8-12	CS	Manual	F1.8	7.15~13.05	-20ºC~+60ºC
3	10-009-003	8MP	1/1.8"	3.8-16	CS	Manual	F1.5	12.53	-20ºC~+60ºC
4	10-009-004	5MP	1/1.7"	12-50	CS	Manual	F1.6	>8.26	-30ºC~+70ºC
5	10-009-005	6MP	1/2.7"	5-50	CS	Manual	F1.4	7.3	-20ºC~+60ºC
6	10-009-021	5MP	1/2.5"	2.8-9.0	CS	DC-Iris	F1.4		-20ºC~+60ºC
7	10-009-022	4MP	1/2.7"	2.8-12	CS	DC-Iris	F1.4	12.53	-20ºC~+60ºC
8	10-009-023	5MP	1/2.7"	2.8-12	CS	DC-Iris	F1.4		-20ºC~+60ºC
9	10-009-024	6MP	1/1.8"	3.6-10	CS	DC-Iris	F1.6		-20ºC~+60ºC
10	10-009-025	5MP	1/2.5"	6-22	CS	DC-Iris	F1.6		-20ºC~+60ºC
11	10-009-026	4MP	1/2.7"	5-50	CS	DC-Iris	F1.6		-20ºC~+60ºC
12	10-009-027	6MP	1/2.7"	5-50	CS	DC-Iris	F1.4	7.3	-20ºC~+60ºC
13	10-009-028	2MP	9.2"	50-750	Non-standard	P-Iris	F3.5		-20ºC~+60ºC
14	10-009-029	3MP	1/1.8"	4-18	C	DC-Iris	F1.6		-20ºC~+60ºC
15	10-009-030	8MP	1/1.8"	3.8-16	CS	DC-Iris	F1.5		-20ºC~+60ºC
16	10-009-031	5MP	1/1.7"	12-50	CS	DC-Iris	F1.6	>8.26	-30ºC~+70ºC
17	10-009-032	8MP	1/1.7"	8-25	CS	DC-Iris	F1.4		-20ºC~+60ºC
18	10-009-033	8MP	1/1.7"	11-50	CS	DC-Iris	F1.4		-20ºC~+60ºC
19	10-009-034	8MP	1/1.7"	16-70	C	DC-Iris	F1.4	8.58~11.69	-30ºC~+70ºC
20	10-009-035	8MP	1/1.7"	12-36	C	DC-Iris	F1.6		-20ºC~+60ºC
21	10-009-036	12MP	1/1.8"	12-40	CS	P-Iris	F1.6		-20ºC~+60ºC
22	10-009-037	8MP	1/1.2"	20-70	CS	P-Iris	F1.3-1.5		-20ºC~+60ºC
23	10-009-038	3MP	2/3"	8-20	C	Manual Iris	F1.7		-20ºC~+60ºC
24	10-009-039	8MP	1/1.8"	10-50	Non-standard	DC-Iris	F1.3-1.5		-20ºC~+60ºC
25	10-009-064	8MP	1/1.7"	35	M12	Manual	F2.4	7.569	-30ºC~+70ºC
26	10-009-065	12MP	1/1.7"	50	M12	Manual	F2.8	24.2	-30ºC~+70ºC

---
