Product Details
Product Description
Product Description

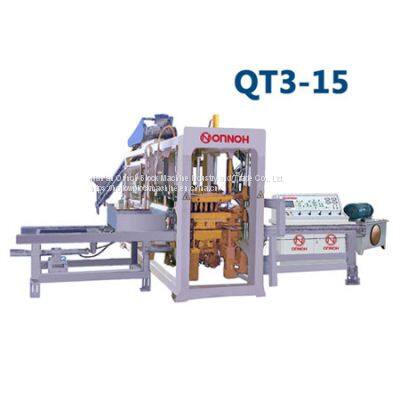

Onnoh QT3-15 full automatic cement brick machine is a cement brick machine combining hydraulic pressure and vibration. The brick machine takes river sand, stone, slag, shale, coal gangue and fly ash as the main raw materials, adds a small amount of cement, and can be used after natural curing through vibration and pressing.
QT3-15 block machine Production Capacity:
Item
| Specification（L*W*H）
| Quantity per hour
|
Concrete block
| 390*190*190（mm）
| 380-432
|
Solid block
| 240*115*53（mm）
| 2500-2880
|
Porous block
| 240*115*90（mm）
| 960-1152
|
Block samples;
QT3-15 BLOCK MACHINE TECHNICAL PARAMETER:
QT3-15 TECHNICAL PARAMETERS
|
Vibration Frequency
| 3800-4500r/min
|
Main machine weigh
| 3.5(T)
|
Dimension
| 10000*4500*2600mm
|
Total Power
| 14.7KW
|
Cycle Time
| 15-22(S)
|
Rated pressure
| 25mpa
|
Vibration force
| 68KN
|
Pallet size
| 680*550mm
|
Onnoh QT3-15 cement brick machine can not only produce cushion blocks and wall bricks of various specifications, but also set secondary distribution device to produce color pavement bricks, permeable bricks, etc. At the same time, the brick machine can also produce various cement cushion blocks. The whole equipment is light, energy saving and high efficiency. It can be used to produce all kinds of wall bricks, such as standard brick, porous brick and hollow brick; And pavement bricks, such as bread brick, curved wave brick, slope protection brick, tree pit stone, I-shaped brick, grass planting brick, blind path brick, etc.
