MZ1610 Woodworking Chain Mortiser Machine Square Hole Drilling Machine Chisel Mortising Machine

Product Description

Product Description

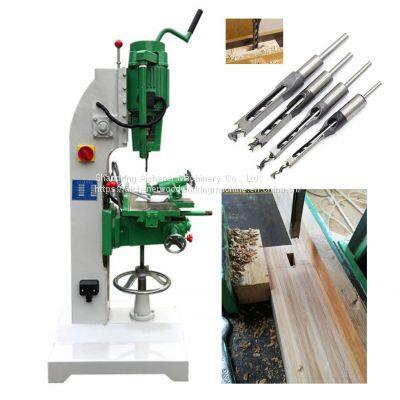

MZ1610 Woodworking Chain Mortiser Machine Square Hole Drilling Machine Chisel Mortising Machine
The vertical single-axis mortise machine is mainly used for wood drilling and opening of the eye. It is a woodworking machine that retains the traditional furniture manufacturing process and can be mechanized efficiently. This machine can easily open a variety of round/elliptical/square blinks. It is an indispensable machine for solid wood furniture and classical furniture making.
Parameter of MZ1610 Woodworking Chain Mortiser Machine Square Hole Drilling Machine Chisel Mortising Machine
Product name
Vertical single axis mortise machine
Model
MZ1610
Max. Mortise size
200*25.4mm
Max. Mortise depth
100mm
Max. Mortise width
6~120mm
Spindle speed
2840r/min
Motor power
2.2kw
Table tilt angle
±30°
Type
Manual control
Worktable lifting stroke
400~450mm
Worktable longitudinal stroke
150mm
Drill shank diameter
1~13mm
Dimension
600*860*1470mm
Weight
260kg
Feature of MZ1610 Woodworking Chain Mortiser Machine Square Hole Drilling Machine Chisel Mortising Machine
1. Users can replace different types of drill bits according to the needs of work to round the eyes or square eyes.
2. Equipped with a quick-clamping device, which can adjust the tightening device according to the specifications of the wood to facilitate drilling.
3. The design is reasonable, the manufacturing is excellent, the worktable is easy to adjust, the front and rear feed transmission system of the handwheel is flexible and stable, the gear lifting is stable and durable, and can be moved up and down or left and right 30 degrees as needed.
4. The motor has high power and is equipped with automatic air blowing system, which makes the drilling force stronger and the work efficiency is faster.
