US$3,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Ring Die Pelleter
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Wet Expansion
Applicable Materials Shape
Granular
Name
Cutting Machine for Animal Feed Making From China
Transport Package
Wooden Case (Plywood)
Specification
CE certificate
Production Capacity
50 Sets/ Month
Product Description

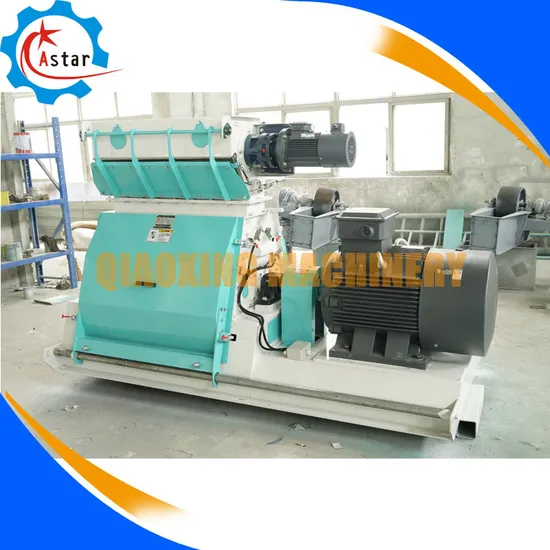

A Series Animal Feed Crush Grinder Machine For Sale
All our Hammer Mill Models :
| Name | Model | Power(KW) | Capacity(T/H) |
Hammer Mill | AST-ZW36A | 22 | 1-3 |
| AST-ZW40A | 37 | 3-5 |
| AST-ZW29C | 55 | 6 |
| AST-ZW29C | 75 | 8 |
| AST-ZW38C | 90 | 10 |
| AST-ZW38C | 110 | 12 |
| AST-ZW50C | 132 | 16 |
| AST-ZW60C | 160 | 18 |
| AST-ZW80C | 185 | 20 |
| AST-ZW80C | 200 | 25 |
| AST-ZW100C | 220 | 28 |
| AST-ZW100C | 250 | 32 |
Hammer Mill | AST-ZW60B | 55 | 2 |
| AST-ZW60B | 75 | 3.5 |
| AST-ZW80B | 90 | 5 |
| AST-ZW80B | 110 | 7 |
| AST-ZW100B | 132 | 9 |
| AST-ZW120B | 160 | 15 |
1. AST-ZW-A series Cutting Machine For Animal Feed Making From China charactaristics :
(1) It is universal type product. With stable performance . it is widely used in small and medium size feed and food processing industries for raw materials grinding .
(2) The design of overall base is high in structural strength and beautiful in appearance.
(3) Direct transmission is adopted. The reasonable arrangement of hammers and clearance between hammers and screens make sure the final products are in uniform fineness .
(4) Multi-grinding chambers are assembled in this machine. The secondary grinding chamber is cast ironing, which has high abrasive resistance .
(5) The bearing imported is with high quality , when working, it has low temperature rising. And it is equipped with the temperature indicator that can show the working condition. The bearing pedestal is SKF brand from Sweden .
(6) Various screen sieve size are selectable. Quick-starting type door opening machinery and frame-type screen pressing mechanism are adopted. Which can make the screen fixed solidly and fast to change the new screen. In this way, this design is easy to operate and convenient to maintenance .
(7) The tool bit of the hammer is spray welding with carbon tungsten alloy, which has long lifetime .
2. A series Cutting Machine For Animal Feed Making From China Technical Parameters :
| Model specification | AST-ZW36A | AST-ZW40A |
| Rotor diameter ( mm) | 560 | 560 |
| Pulverizing room width (mm) | 360 | 400 |
| Spindle speed ( RPM) | 2980 | 2980 |
Hammer Linear speed ( RPM) | 87 | 87 |
| Hammers quantity ( PCS) | 48 | 56 |
| Main power( kw) | 22 | 37 |
| Normal Air Suction volume(cubic meters/minute) | 25 | 45 |
| Output (t/h) | 3-5 | 5-7 |
Any more information you need A Series Cutting Machine For Animal Feed Making From China , please feel free to contact with us.
