Basic Info.
Certification
CCC, ISO9001, CE
Work Roll Material
42CrMo
Name
Roller-Bending Machine
Model Number
Ws11ky-220*4500
Transport Package
Wooden Box
Production Capacity
50 Pieces/Year
Product Description
Product animation display

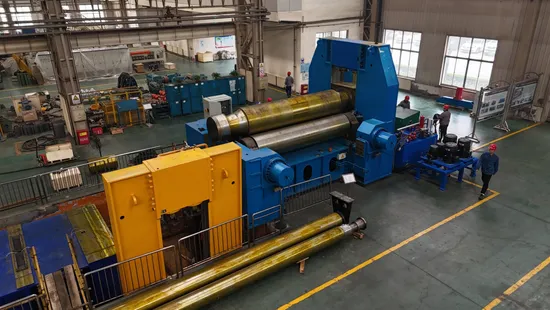

WS11KY CNC fully hydraulic four-roll plate rolling machine can complete the pre-bending and winding of the end of the metal sheet without turning, and the remaining straight edge is the smallest in various plate rolling machines.
The remaining straight edge of prebending is small
Product Parameters
| Upper and lower roller materials | 42CrMo |
| Rounding ability | 70mm (plate thickness) ×3010mm (plate width) ×2900mm (inner diameter) |
| Synchronization accuracy of upper and lower roller positions | ±0.2mm |
| Coil speed | 3-3.5m/min |
| Hydraulic system cooling system | The oil temperature is controlled between 15ºC and 55ºC |
| Overall power | 450Kw |
| Prebend the remaining straight edge | 2-2.5 times plate thickness |
| Two lower roll center distance | 1200-1950mm |
Rolling process flow
Detailed Photos
Independently developed numerical control system
Work roll bearing adopts aligning roller bearing for rolling mill
Our Advantages
The company has a high standard of modern equipment manufacturing base, a comprehensive workshop of nearly 60,000 square meters, the maximum lifting capacity of 300 tons, equipped with XKW2840/4×160 CNC gantry milling and boring center, TK6920/6916 CNC floor boring and milling, C61250×23M heavy lathe and other precision processing equipment more than 100 sets. With testing center, physical and chemical center, experimental center, complete manufacturing process, advanced testing means, effectively ensure product accuracy and machine quality. The company implements the enterprise spirit of "no excuses, striving for first-class", which is internalized in the heart and externalized in the line, and enhances the sense of responsibility and responsibility of cadres and employees. Adhere to the "integrity-based, create win-win" business philosophy, and ultimately realize the development vision of "making a profit enterprise, doing a healthy enterprise, doing a longevity enterprise", and contribute to the development of China's high-end forming equipment manufacturing industry wisdom and strength.
Certifications
Our cooperation
Russian State Metallurgical Design Institute to visit the enterprise
Korea to visit the enterprise
Vietnamese customers to visit the enterprise wind power plate rolling machine
We look forward to working with you!
>>
