| US$9,830.00-13,763.00 | 1 Set (MOQ) |

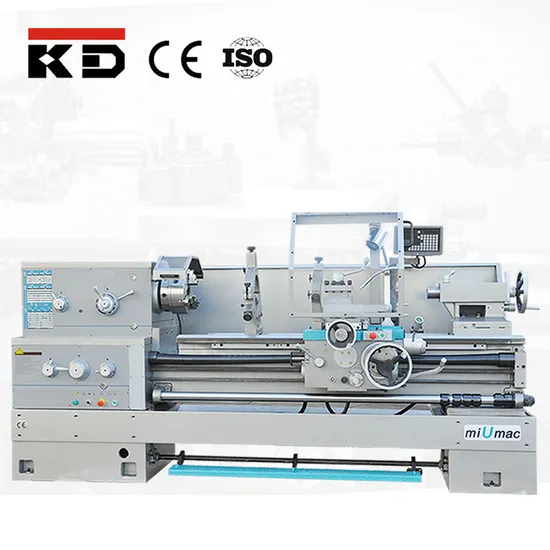

| MODELS | C6256C | C6266C | C6277C |
| CAPACITY | | | |
| Max. swing over bed | Ф560mm | Ф660mm | Ф770mm |
| Max. swing over carriage | Ф360mm | Ф420mm | Ф575mm |
| Max. swing over gap | Ф770mm | Ф870mm | Ф1050mm |
| Bed width | 405mm | ||
| Effective length of gap | 230mm | ||
| Distance between centers | 1000/1500/2000/3000mm | ||
| Max turning length | 830/1330/1830/2830mm | ||
| SPINDLE | | ||
| Spindle nose | D8 | ||
| Spindle bore | Ф105mm | ||
| Taper bore of spindle | Ф113mm 1:20 | ||
| Steps of spindle speed | 12 | ||
| Range of spindle speed | 36~1600rpm | ||
| FEED | | ||
| Range of longitudinal feeds | 0.063~2.52 (0.023″~0.937″)mm | ||
| Range of cross feeds | 0.027~1.07(0.010″~0.404″)mm | ||
| RAPID TRAVEL | | ||
| Longitudinal | 4500mm/min | ||
| Cross | 1900mm/min | ||
| THREAD RANGE/ NUMBER | | ||
| Metric pitch threads | 1~14mm/ 22 | ||
| Whit-worth threads | 28~2TPI/ 26 | ||
| Module threads | 0.5~7MP/ 18 | ||
| D.P. Threads | 56~4DP/ 24 | ||
| TAILSTOCK SLEEVE | | ||
| Taper bore | M.T.NO.5 | ||
| Max travel | 150(5~29/32″)mm | ||
| External diameter | Ф75(2~61/64″)mm | ||
| OTHERS | | ||
| Size of tool shank | 25×25mm | ||
| Max travel of cross slide | 310mm | 360mm | 430mm |
| Max travel of top slide | 145mm | ||
| Main motor power | 7.5kw | ||
| Overall dimension (LxWxH) | 2500/3000/3500/4500 x1100x1350mm | 2500/3000/3500/4500 x1100x1450mm | 2500/3000/3500/4500 x1100x1540mm |
| Net weight | 2400/2650/2900/3250g | 3000/3200/3400/3900kg | 3600/3800/4000/4500kg |
