US$38,000.00-55,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Raw Material Thickness
1.5mm-3.0mm
Shaft Material
45#Steel with Heat Treatment
Cutting Blade
Cr12MOV After Heat Treatment
Control System
Computer Control
Yield Strength
235/345MPa
Roller Material
Gcr15 with Heat Treatment
Transport Package
Machine Wrapped with Waterproof Cloth
Production Capacity
500 Sets/Year
Packaging & Delivery
Package Size
1150.00cm * 150.00cm * 160.00cm
Package Gross Weight
8600.000kg
Product Description

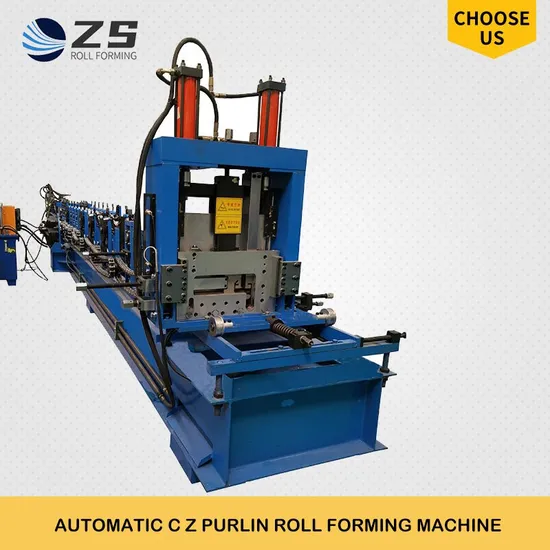

Automatic Adjustable C Z Purlin Roll Forming Machine
Advantages:
1. PLC CONTROL C/Z INTERCHANGEABLE, EASY ACESS, SIMPLE TO LEARN, LOWERS LABLE COST.PRODUCE DIFFERENT SIZE PURLIN WITHOUT MANUAL CHANGING ROLLERS OR SPACERS.
2. FORMING WITH PRE STRENTHENING, TO MAKE SURE THE PERFECT SHAPE
3. INFINITE SIZE CUTTER THAT CHAGES SIZES WITH A FEW SPIN.
4. EASY OPERATION, LOW MAINTENANCE COST.
5. WITH PRE-CUT SYSTEM SAVES MATERIAL.
6. C/Z INTERCHANGED WITH ONE BOTTON
| o. | Item | Unit | Parameter | Remark |
| 1 | Material |
| Type | | PPGI, PPGL, GI, GL, PPAL | As requirement |
| Thickness of Material | mm | 2.0-3.0mm | As requirement |
| 2 | Material Width | mm | Follow with design | As requirement |
| 3 | Production Speed | m/min | Common speed: 0-15m/min | Adjustment |
| High speed: 20-30m/min | As requirement |
| 4 | Effective Width of Product | mm | Follow with design | According to drawings |
| 5 | Roller Material | | 45#, Cr12, GCr15, GCr12MoV | As design |
| 6 | Drive Type | | By Chain or Gear or Gearbox | |
| 7 | Motor Power | kW | 22kW | As design |
| 8 | Brand of Electric Control System | | Delta or Siemens | Selectable |
| 9 | Dimension ( L* W * H ) | m | 10.5*1.45*1.5m | Based on design |
| 10 | Warranty | Month | 15 | |
Size Available:
Machine Components:
The In-feed Section of the machine allows for variations in sheet width. Pre-Level Device with 4 over 3 shafts to remove the Coil-set. Making sure the material is flat enough to be formed (or punched).
High Precision Servo Motor is adopted to ensure the punching accuracy. One-button control to swap from C to Z, Z to C. Changing WEB and FLANGE with auto PLC control,any within range. Shaft Diameter:Φ80 mm . Raw Materials: GCr15, Heat Treatment.
22KW hydraulic motor driven roll forming machine working,it is can make sure high speed and stable working in long time.
Screw adjustment to realize rapid switching of WEB size, to achieve different specifications of C/Z purlin shearing. The cutting tool material is made of Cr12MoV after heat treatment, with high strength, which can better guarantee the cutting effect and the durability of the cutting tool. Blanking size up to 8mm, Minimize the material wastes.
