2024 New Electronic Handwheel Latest Upgrade Vertical Machining Center High Accuracy Centro De Mecanizado Vertical CNC Milling Machine Vmc1160

Product Description

Product Description
Features of VMC1160 vertical machining center, CNC milling machine:
1.Machine frame with linear guides in an extra-wide configuration, Robust construction for efficient machining.
2.Linear guide system for rapid feeds up to 10 m/min.
3.High-precision preloaded ball screws on all 3 axes.The 4th axis is optional.
4.Funnel type 24-station tool changer for quick and precise tool changes (as Optional).
5.Chip conveyor and purge system for optimum chip removal.
6.Easy accessibility of work table for easy setup and tooling
7.Enclosed work space ensures safe and contamination-free work.
8.Operating system: Mitsubishi, Fanuc and Siemens
9. mainly applicable to processing board, plate, shell mold and small complex parts.
10.able to mill steel,copper,aluminum,wood and plastic etc.
11.can continuously complete drilling,milling,tapping,reaming,expanding and other processess at one clamping. Product Parameters

cnc vertical machining center			VMC1160
Table	Area	Unit	1200×600 mm
	T-slot	mm	5-18-100
	Max. load	kg	800
Travel	Moving range X, Y, Z	mm	1100×600×600
	Spindle nose to table surface	mm	120~720
	Distance from Spindle Center to Z-Axis Guide Face	mm	650
Feed	Rapid feed speed X, Y, Z	m/min	36/36/30
	Feed speed X, Y, Z	mm/min	1~10000
Spindle	Taper		BT40
	Speed	r/min	8000
	Power	kW	AC servo 11/15
Tool magazine with capacity		qty	24
Accuracy	Positioning accuracy	mm	±0.008/300 JIS
	Re-positioning accuracy	mm	±0.005/300 JIS
Overall dimension		mm	3300*2400*3000
Machine weight		kg	6300

Detailed Photos
Thickening protection

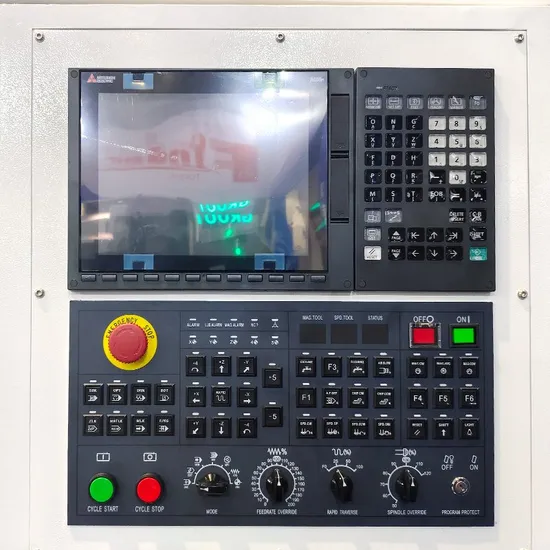

Standard configuration:
GSK 25i,
KND 2100m control system
Optional:
Mitsubishi m8Ob,
FANUC Oi MF,
SIEMENS 828D
Taiwan 8000 rpm BT40 spindle in standard
Optional: 12000 RPM direct connected spindle with oil cooling
Taiwan HiWIN guideways and ballscrew
24 pcs arm type toolmagazine
Company Profile
At Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.

---
