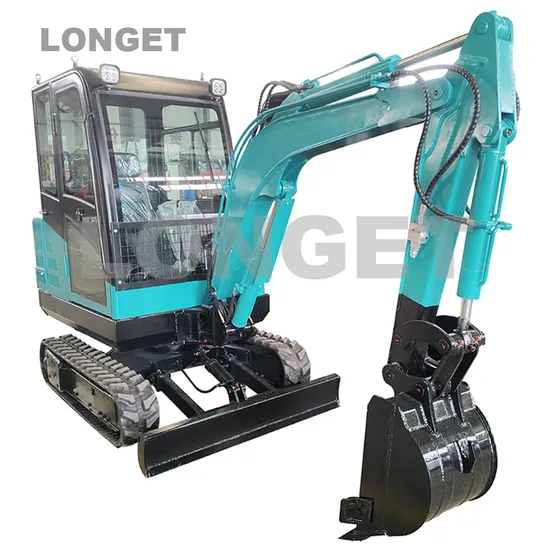

Global Markets Rubber Crawler Mini Excavator Well Performance Small Digger Backhoe Excavator

Product Description

Product Description
1. The mini excavator is equipped with top-brand engines, such as Yanmar or Kubota, satisfying the EURO5 and EPA Tier4 emission standards.
2. Based on the rich manufacturing experience, the engines and hydraulic systems are matched perfectly. So the mini excavators enjoy the best efficiency and performance.
3. The whole body adopts the reinforced material, making it stronger and more durable.
4. Many tools could be attached to complete various jobs, such as Hammer, Auger, Rake, Thumb, Grapple, etc.
Color Customization
Product Parameters

ITEM	PARAMETER(METRIC)	PARAMETER(BRITISH)
Operating Weight	2000 Kg	4409 lb
Digging Bucket Capacity	0.045 cbm/100kg	0.045 cbm/220Ib
Bucket Width	680 mm	26.7 in
WheelBase	880 mm	34.6 in
Total Length of Track	1240 mm	48.8 in
Chassis Width	990 mm	38.9 in
Track Width	180 mm	7.1 in
Max. Digging Depth	2310 mm	90.9 in
Max. Vertical Digging Depth	2036 mm	80.1 in
Max. Digging Height	3720 mm	146.4 in
Max. Dumping Height	2260 mm	88.9 in
Max. Digging Radius On Ground	3600 mm	141.7 in
Min. Rotation Radius	1850 mm	72.8 in
Travel Speed	2.7 Km/h	1.68 mph
Max Upgrade Height of Bulldozer Blade	165 mm	6.5 in
Max Digging Depth of Bulldozer Blade	170 mm	6.69 in

ITEM	PARAMETER(METRIC)	PARAMETER(BRITISH)
Engine	Yangma 3TNV70
Fuel	Dieselor
Gross Power Rating	14 HP	10 kw
Number of Cylinders	3
Displacement	0.854 L	52.1 in³
Rated Speed	2200 rpm
Fuel Tank Capacity	30 L	7.92 gal
Engine Oil, w/filter	3.7 L	4.2 qt
Hydraulic Reservoir Capacity	35 L	9.2 gal
Electrical System	12V

Company Profile
We have rich experience in the manufacture of Loader-Digger, Mini Excavator and Skid Steer Loader.
Our Advantages
1) Pre-sale service:We could assist you finding the suitable equipment according to your requirement.2) On-sale service:We strictly follow the commercial rules, contract signing. Follow the production process, control the goods quality, track the goods delivery, guarantee you receive the qualified goods safely.3) After-sale service:Provide some consumables with the equipment;Provide operation manual for instructing the basic installation and operation;Provide video guidance for trouble shooting.

---
