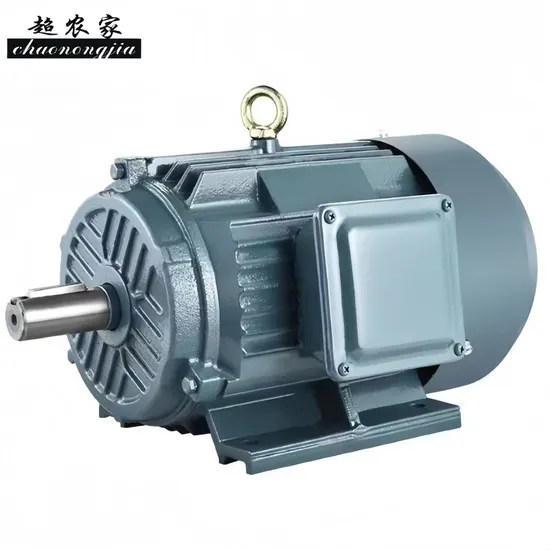

Cast Iron Three Phase Induction AC Motor Y2 Y3 Y4 Y5 Electrical Motor

Product Description

Product Description
YE2/YE3/YE4 High-Efficiency IE2/IE3/IE4 3-Phase Asynchronous AC Electric Induction Motor customized voltage
YE3 series three-phase asynchronous motor is a super-high efficiency motor product. It has the characteristics of super high efficiency, energy saving, low vibration, low noise, reliable performance, easy installation and maintenance, etc. The power level and installation size of this series of motors meet international standards, the protection level is IP55, and the cooling method is IC411.
Advantages: 1. IE3 efficiency level three-phase asynchronous motor. 2. Power range 0.75kw ~ 315kw. 3. 100% copper stator. 4. High-quality bearings support the rotor to rotate smoothly. 5. F-class insulation level (155ºC), B-class (80K) insulation level. 6. IP55 protection level. 7. Compact structure, small space occupation, easy to install and maintain.
Operating conditions: Ambient temperature: -15°C≤0≤40°C Altitude: not more than 1000 meters Rated voltage: 380V Rated frequency: 50Hz Protection level: IP55 Insulation level: F Cooling method: IC411 Duty cycle: S1 (continuous) Connection: Star connection up to 3KW, delta connection for 4KW and above.The mounting dimensions of Three-phase AC motor speed control comply
with IEC standards, it has the following features:1. High efficiency 2. Energy saving 3. Low noise 4. Small vibration 5. High reliability 6. Nice appearance 6. Nice appearance 7. Convenient operation and maintenanceProduct Parameters

Type	Power (kw)	Current (A)	Speed (r/min)	Eff.%	P.F	N.m	Tst Tn	Ist Tn	T.max Tn	dB(A)
synchronous speed 3000 r/min
YE3-63M1-2	0.18	0.53	2720	63.9	0.8	0.63	2.2	5.5	2.2	61
YE3-63M2-2	0.25	0.70	2720	67.1	0.81	0.88	2.2	5.5	2.2	61
YE3-71M1-2	0.37	1.0	2740	69.0	0.81	1.29	2.2	6.1	2.2	62
YE3-71M2-2	0.55	1.4	2870	72.3	0.82	1.92	2.2	6.1	2.2	62
YE3-80M1-2	0.75	1.7	2875	80.7	0.82	2.50	2.2	7.0	2.3	62
YE3-80M2-2	1.1	2.4	2880	82.7	0.83	3.65	2.2	7.3	2.3	62
YE3-90S-2	1.5	3.2	2880	84.2	0.84	4.97	2.2	7.6	2.3	67
YE3-90L-2	2.2	4.6	2880	85.9	0.85	7.30	2.2	7.6	2.3	67
YE3-100L-2	3	6.0	2915	87.1	0.87	9.95	2.2	7.8	2.3	74
YE3-112M-2	4	7.8	2935	88.1	0.88	13.1	2.2	8.3	2.3	77
YE3-132S1-2	5.5	10.6	2930	89.2	0.88	17.9	2.0	8.3	2.3	79
YE3-132S2-2	7.5	14.4	2950	90.1	0.88	24.4	2.0	7.9	2.3	79
YE3-160M1-2	11	20.6	2945	91.2	0.89	35.6	2.0	8.1	2.3	81
YE3-160M2-2	15	27.9	2945	91.9	0.89	48.6	2.0	8.1	2.3	81
YE3-160L-2	18.5	34.2	2950	92.4	0.89	60.0	2.0	8.2	2.3	81
YE3-180M-2	22	40.5	2965	92.7	0.89	71.2	2.0	8.2	2.3	84
YE3-200L1-2	30	54.9	2965	93.3	0.89	96.6	2.0	7.6	2.3	84
YE3-200L2-2	37	67.4	2965	93.7	0.89	119	2.0	7.6	2.3	86
YE3-225M-2	45	80.8	2965	94.0	0.90	145	2.0	7.7	2.3	89
YE3-250M-2	55	98.5	2975	94.3	0.90	177	2.0	7.7	2.3	91
YE3-280S-2	75	134	2975	94.7	0.90	241	1.8	7.1	2.3	91
YE3-280M-2	90	160	2975	95.0	0.90	289	1.8	7.1	2.3	92
YE3-315S-2	110	195	2985	95.2	0.90	352	1.8	7.1	2.3	92
YE3-315M-2	132	234	2985	95.4	0.90	422	1.8	7.1	2.3	92
YE3-315L1-2	160	279	2985	95.6	0.91	512	1.8	7.2	2.3	92
YE3-315L-2	185	323	2985	95.7	0.91	592	1.8	7.2	2.3	92
YE3-315L2-2	200	349	2985	95.8	0.91	640	1.8	7.2	2.2	100
YE3-315L3-2	220	383	2985	95.8	0.91	704	1.8	7.2	2.2	100
YE3-355M1-2	220	383	2985	95.8	0.91	704	1.8	7.2	2.2	100
YE3-355M-2	250	436	2985	95.8	0.91	800	1.6	7.2	2.2	100
YE3-355L1-2	280	488	2985	95.8	0.91	896	1.6	7.2	2.2	100
YE3-355L-2	315	549	2985	95.8	0.91	1008	1.6	7.2	2.2	100
YE3-355L2-2	355	619	2985	95.8	0.91	1136	1.6	7.2	2.2	100
YE3-355L3-2	375	654	2985	95.8	0.91	1200	1.6	7.2	2.2	100

Type	Power (kw)	Current (A)	Speed (r/min)	Eff.%	P.F	N.m	Tst Tn	Ist Tn	T.max Tn	dB(A)
synchronous speed 1500 r/min
YE3-63M1-4	0.12	0.45	1310	55.8	0.72	0.87	2.1	4.4	2.2	52
YE3-63M2-4	0.18	0.64	1310	58.6	0.73	1.31	2.1	4.4	2.2	52
YE3-71M1-4	0.25	0.81	1330	63.6	0.74	1.8	2.1	5.2	2.2	55
YE3-71M2-4	0.37	1.1	1330	65.3	0.75	2.66	2.1	5.2	2.2	55
YE3-80M1-4	0.55	1.4	1430	80.6	0.75	3.67	2.3	6.5	2.3	56
YE3-80M2-4	0.75	1.8	1430	82.5	0.75	5.01	2.3	6.6	2.3	56
YE3-90S-4	1.1	2.6	1430	84.1	0.76	7.35	2.3	6.8	2.3	59
YE3-90L-4	1.5	3.5	1430	85.3	0.77	10	2.3	7.0	2.3	59
YE3-100L1-4	2.2	4.8	1440	86.7	0.81	14.6	2.3	7.6	2.3	64
YE3-100L2-4	3	6.3	1440	87.7	0.82	19.9	2.3	7.6	2.3	64
YE3-112M-4	4	8.4	1455	88.6	0.82	26.3	2.2	7.8	2.3	65
YE3-132S-4	5.5	11.2	1465	89.6	0.83	35.9	2.0	7.9	2.3	71
YE3-132M-4	7.5	15.0	1465	90.4	0.84	48.9	2.0	7.5	2.3	71
YE3-160M-4	11	21.5	1470	91.4	0.85	71.5	2.0	7.7	2.3	73
YE3-160L-4	15	28.8	1470	92.1	0.86	97.4	2.0	7.8	2.3	73
YE3-180M-4	18.5	35.3	1470	92.6	0.86	120	2.0	7.8	2.3	76
YE3-180L-4	22	41.8	1470	93.0	0.86	143	2.0	7.8	2.3	76
YE3-200L-4	30	56.6	1475	93.6	0.86	194	2.0	7.3	2.3	76
YE3-225S-4	37	69.6	1480	93.9	0.86	239	2.0	7.4	2.3	78
YE3-225M-4	45	84.4	1480	94.2	0.86	290	2.0	7.4	2.3	78
YE3-250M-4	55	103	1485	94.6	0.86	354	2.0	7.4	2.3	79
YE3-280S-4	75	136	1490	95.0	0.88	481	2.0	6.7	2.3	80
YE3-280M-4	90	163	1490	95.2	0.88	577	2.0	6.9	2.3	80
YE3-315S-4	110	197	1490	95.4	0.89	705	2.0	7.0	2.2	88
YE3-315M-4	132	236	1490	95.6	0.89	846	2.0	7.0	2.2	88
YE3-315L1-4	160	285	1490	95.8	0.89	1026	2.0	7.1	2.2	88
YE3-315L-4	185	329	1490	95.9	0.89	1186	2.0	7.1	2.2	88
YE3-315L2-4	200	352	1490	96.0	0.90	1282	2.0	7.1	2.2	88
YE3-315L3-4	220	387	1490	96.0	0.90	1410	2.0	7.1	2.2	88
YE3-355M1-4	220	387	1490	96.0	0.90	1410	2.0	7.1	2.2	95
YE3-355M-4	250	440	1495	96.0	0.90	1597	2.0	7.1	2.2	95
YE3-355L1-4	280	492	1495	96.0	0.90	1789	2.0	7.1	2.2	95
YE3-355L-4	315	554	1495	96.0	0.90	2012	2.0	7.1	2.2	95
YE3-355L2-4	355	638	1495	96.0	0.88	2268	1.7	7.0	2.2	95
YE3-355L3-4	375	674	1495	96.0	0.88	2395	1.7	7.0	2.2	95

Type	Power (kw)	Current (A)	Speed (r/min)	Eff.%	P.F	N.m	Tst Tn	Ist Tn	T.max Tn	dB(A)
synchronous speed 1000 r/min
YE3-71M1-6	0.18	0.76	850	54.6	0.66	2.02	1.9	4.0	2.0	52
YE3-71M2-6	0.25	0.97	850	57.4	0.66	2.81	1.9	4.0	2.0	52
YE3-80M1-6	0.37	1.2	910	68	0.70	3.88	1.9	5.5	2.0	54
YE3-80M2-6	0.55	1.6	925	72	0.71	5.68	1.9	5.8	2.1	54
YE3-90S-6	0.75	2	945	78.9	0.71	7.58	2.0	6.0	2.1	57
YE3-90L-6	1.1	2.8	950	81	0.73	11.1	2.0	6.0	2.1	57
YE3-100L-6	1.5	3.8	950	82.5	0.73	15.1	2.0	6.5	2.1	61
YE3-112M-6	2.2	5.4	965	84.3	0.74	21.8	2.0	6.6	2.1	65
YE3-132S-6	3	7.2	975	85.6	0.74	29.4	1.9	6.8	2.1	69
YE3-132M1-6	4	9.5	975	86.8	0.74	39.2	1.9	6.8	2.1	69
YE3-132M2-6	5.5	12.7	975	88.0	0.75	53.9	1.9	7.0	2.1	69
YE3-160M-6	7.5	16.2	980	89.1	0.79	73.1	1.9	7.0	2.1	70
YE3-160L-6	11	23.1	980	90.3	0.80	107	1.9	7.2	2.1	70
YE3-180L-6	15	30.9	980	91.2	0.81	146	1.9	7.3	2.1	73
YE3-200L1-6	18.5	37.8	985	91.7	0.81	179	1.9	7.3	2.1	73
YE3-200L2-6	22	44.8	985	92.2	0.81	213	1.9	7.4	2.1	73
YE3-225M-6	30	59.1	985	92.9	0.83	291	1.9	6.9	2.1	74
YE3-250M-6	37	71.7	985	93.3	0.84	359	1.9	7.1	2.1	76
YE3-280S-6	45	85.8	990	93.7	0.85	434	1.9	7.3	2.0	78
	55	103	990	94.1	0.86	531	1.9	7.3	2.0	78
YE3-315S-6	75	143	990	94.6	0.84	723	1.9	6.6	2.0	83
YE3-315M-6	90	170	990	94.9	0.85	868	1.9	6.7	2.0	83
YE3-315L1-6	110	207	990	95.1	0.85	1061	1.9	6.7	2.0	83
YE3-315L2-6	132	244	990	95.4	0.86	1273	1.9	6.8	2.0	83
YE3-315L3-6	160	296	990	95.6	0.86	1543	1.9	6.8	2.0	83
YE3-355M1-6	160	296	995	95.6	0.86	1536	1.9	6.8	2.0	85
YE3-355M-6	185	342	995	95.7	0.86	1776	1.9	6.8	2.0	85
YE3-355M2-6	200	365	995	95.8	0.87	1920	1.9	6.8	2.0	85
YE3-355L1-6	220	401	995	95.8	0.87	2112	1.9	6.8	2.0	85
YE3-355L-6	250	456	995	95.8	0.87	2399	1.9	6.8	2.0	85
YE3-355L2-6	280	510	995	95.8	0.87	2687	1.9	6.8	2.0	85
YE3-355L3-6	315	581	995	95.8	0.86	3023	1.9	6.8	2.0	85
Type	Power (kw)	Current (A)	Speed (r/min)	Eff.%	P.F	N.m	Tst Tn	Ist Tn	T.max Tn	dB(A)
synchronous speed 750 r/min
YE3-80M1-8	0.18	0.80	700	56.0	0.61	2.46	1.8	3.3	1.9	52
YE3-80M2-8	0.25	1.1	700	59.0	0.61	3.41	1.8	3.3	1.9	52
YE3-90S-8	0.37	1.4	695	66.0	0.61	5.08	1.8	4.0	1.9	56
YE3-90L-8	0.55	2.0	695	70.0	0.61	7.56	1.8	4.0	2.0	56
YE3-100L1-8	0.75	2.3	705	73.5	0.67	10.2	1.8	4.0	2.0	59
YE3-100L2-8	1.1	3.2	705	76.5	0.69	14.9	1.8	5.0	2.0	59
YE3-112M-8	1.5	4.2	715	77.5	0.70	20.0	1.8	5.0	2.0	61
YE3-132S-8	2.2	5.9	730	80.0	0.71	28.8	1.8	6.0	2.2	64
YE3-132M-8	3	7.6	730	82.5	0.73	39.2	1.8	6.0	2.2	64
YE3-160M1-8	4	9.8	725	85.0	0.73	52.7	1.9	6.0	2.2	68
YE3-160M2-8	5.5	13.1	725	86.0	0.74	72.4	1.9	6.0	2.2	68
YE3-160L-8	7.5	17.4	730	87.5	0.75	98.1	1.9	6.0	2.2	68
YE3-180L-8	11	25.0	725	89.0	0.75	145	1.9	6.5	2.2	70
YE3-200L-8	15	33.2	730	90.4	0.76	196	2.0	6.6	2.2	73
YE3-225S-8	18.5	40.6	735	91.2	0.76	240	2.0	6.6	2.2	73
YE3-225M-8	22	46.8	735	91.5	0.78	286	2.0	6.6	2.2	73
YE3-250M-8	30	62.6	735	92.2	0.79	390	1.9	6.5	2.0	75
YE3-280S-8	37	76.5	740	93.0	0.79	478	1.8	6.6	2.0	76
YE3-280M-8	45	92.6	740	93.5	0.79	581	1.8	6.6	2.0	76
YE3-315S-8	55	110	740	93.8	0.81	710	1.8	6.6	2.0	82
YE3-315M-8	75	150	740	94.0	0.81	968	1.8	6.2	2.0	82
YE3-315L1-8	90	176	740	94.5	0.82	1161	1.8	6.4	2.0	82
YE3-315L2-8	110	215	740	94.8	0.82	1420	1.8	6.4	2.0	82
YE3-355M1-8	132	257	745	95.0	0.82	1692	1.8	6.4	2.0	90
YE3-355M2-8	160	312	745	95.0	0.82	2051	1.8	6.4	2.0	90
YE3-355L1-8	185	360	745	95.2	0.82	2371	1.8	6.4	2.0	90
YE3-355L-8	200	385	745	95.2	0.83	2564	1.8	6.4	2.0	90
YE3-355L2-8	220	423	745	95.2	0.83	2820	1.8	6.4	2.0	90
YE3-355L3-8	250	481	745	95.2	0.83	3205	1.8	6.5	2.0	90
synchronous speed 600 r/min
YE3-315S-10	45	99	590	92.0	0.75	728	1.5	6.2	2.0	90
YE3-315M-10	55	120	590	92.5	0.75	890	1.5	6.2	2.0	90
YE3-315L1-10	75	161	590	93.0	0.76	1214	1.5	5.8	2.0	90
YE3-315L2-10	90	190	590	93.4	0.77	1457	1.5	5.9	2.0	90
YE3-355M1-10	110	228	595	93.8	0.78	1766	1.3	6.0	2.0	90
YE3-355M2-10	132	273	595	94.2	0.78	2119	1.3	6.0	2.0	90
YE3-355L1-10	160	331	595	94.2	0.78	2568	1.3	6.0	2.0	90
YE3-355L-10	185	383	595	94.2	0.78	2969	1.3	6.0	2.0	90
YE3-355L2-10	200	414	595	94.2	0.78	3210	1.3	6.0	2.0	90

Detailed Photos
HIGH EFFICIENCY AND ENERGY SAVINGS
This single-phase YL electric motor operates at an efficiency of IE2, ensuring that it consumes less power while providing the same level of performance, resulting in significant energy savings for customers.DURABLE AND RELIABLE CONSTRUCTION
With a totally enclosed protector and an iron shell housing, this motor is designed to withstand harsh environments and provide long-lasting performance, meeting the demands of various industries.WIDE POWER RANGE AND FLEXIBILITY
Available in a power range of 0.37~7.5kw, this motor can be easily integrated into various applications, from small-scale to large-scale operations, catering to the diverse needs of customers.MOTOR EFFICIENCY AND STARTING TORQUE
Three-phase motors typically operate efficiently in various applications, offering energy savings over time. Depending on the type, the starting torque can vary, which is important for applications requiring higher initial force.SPEED CONTROL AND NOISE LEVELS
Many designs allow for speed control, providing flexibility in various operational contexts. High-quality three-phase motors operate quietly, making them suitable for residential and commercial environments.FAQ
Q1.Are you a factory or a trading company?
Manufacturer, we have focused on the development and production of Motor for more than 20 years.
Q2.Whether to provide customized services?
Of course, OEM and ODM.
Q3.How to get a quote?
Please leave your purchase request and business card with us and we will respond to you within one hour. You can contact us directly through the Trade Manager.
Q4.Can I buy one as a sample?
Of course.
Q5.How is your quality control?
Our professional QC will check the quality during production and carry out quality tests before shipment.

---
