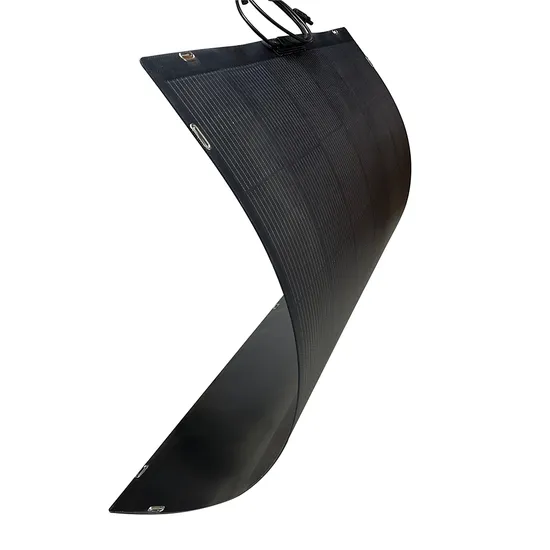

Flexible Solar Panel Price Thin Film 300W 310W 320watt Solar PV Module

Product Description

Product Description

tem Number:	SUNPOWER-100W
Solar Cell:	125MONO
Maximum Power(W):	100W
Optimum Power Voltage(Vmp):	17.6V
Optimum Operatige Current(Imp):	5.7A
Open Circuit Voltage(Voc):	20.8V
Short Circuit Current(Isc):	6.67A
Size of Module(mm):	1145*535*2.6MM
Temperature Coefficients of Isc(%)ºC:	0.065+/-0.015%/°C
Temperature Coefficients of Voc(%)ºC:	_(22.3+/0.1)mv°C
Temperature Coefficients of Pm(%)ºC:	_(0.5+/-0.05)/°C
Temperature Coefficients of Im(%)ºC:	+0.1/°C
Temperature Coefficients of Vm(%)ºC:	-0.38/°C
Temperature Range:	-40°C to +85°C
Tolerance Wattage(e.g.+/-5%):	±3%
Weight Per Piece(KG):	2.0KG
Junction Box Type:	Pass the CE,FCC,IEC Certificate
Cell Efficiency (%):	20.8~22.8%
FF (%):	70-72%

Features
(1) It is lightweight, only 2kg including the cables, and thin, only 2.6mm thickness;
(2) Semi flexible, 30degree bending is no problem;
Advantage:
(1) High efficiency: It is Sunpower solar panel, with efficiency 22%-24%;
(2) Various applications such as: RV/Boat/Marine or Golf cart etc.
(3) High light transmittance 98%, and high temperature resistance range -40°C to +85°C;
Flexible Panel Feature
1. semi flexible : bending angle up to 30 -90 degrees
2. Durable with TPT backsheet, no glass
3. Light weight for easy carrying
4. the thickness only 3mm, easy joint to your yacht or RV roof
5. Can be stepped on with soft soled shoses
6. High efficiency mono crystalline solar panel
7. Rounding corners to prevent from being scratched
8. From -20°C ~ +60°C Work temperate
9.Widely applied to RV, Golf car, Electric car, Yacht, boat, marine , Tent or backpack ect
Our Services
(1)All these products will be covered with 2years warranty;
(2) Within the warranty period, the products you found with defects, can be offered with new ones as replacements.
(3)Other service: Apart from these, we will also provide OEM/ODM service based on your requirements.
