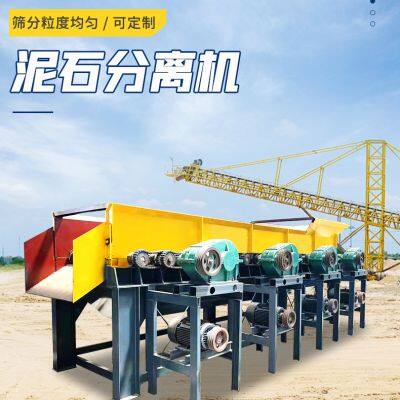

The mud and stone separator is a professional separation equipment used to effectively separate mixtures such as soil and stones.
I. Working principle
The mud and stone separator achieves precise stratification and rapid screening by simulating the natural precipitation process and strengthening the collision and condensation effect between particles. Specifically, the equipment drives the linkage shaft of the multi-stage device through the motor to carry out regular flipping movements, and the shaft disc configured on the roller is used to move the material forward. The sieve surface is composed of multiple rotating discs arranged in a straight line. There is an equal layout of sieve discs on the roller, which are rotated by the gears to drive the wheel chain. The material is moved by the roller and screened by the sieve plate on the sieve surface. The material larger than the sieve gap is transported from the top of the sieve plate to the next process, while the material smaller than the sieve space falls from the bottom of the collection belt and is sent out of the equipment by the belt machine.
II. Equipment features
1. High efficiency: The mud and stone separator can accurately separate mud and stone mixtures, improve the classification efficiency of solid waste, and has strong processing capacity, which is suitable for the separation of a large number of materials.
Two. Adaptability: The equipment has a wide adaptability to materials. Whether it is viscous soil with high water content or sand and stone of different sizes, it can separate particle size and maintain continuous operation.
3. Reliability: The equipment design is firm and reliable, the structure is compact, the maintenance rate is low, and it can operate stably for a long time.
4. Environmental protection: The mud and stone separator reduces the dependence on chemical aids in the separation process, and mostly adopts a closed design, which effectively reduces dust pollution and reduces the risk of environmental pollution.
III. Instructions for use
1. Installation and fixation: The equipment should be fixed on the special foundation and fixed by pre-buried bolts to ensure the stable operation of the equipment.
Two. Air operation inspection: After the new screening machine is installed, it is necessary to carry out an idle operation inspection to confirm that the motor rotates synchronously and reverse, and there is no abnormal sound before material screening.
3. Material input: When screening materials, the material should be evenly put into the feeding port to ensure the uniform distribution of the materials on the sieve surface, so as to avoid a large impact on the fall of the material and damage to the equipment.
4. Adjust the speed: Users can adjust the speed of the screening machine according to the gap of the screening machine and the specific gravity of the material to achieve the best screening effect.
5. Shutdown and maintenance: When shutting down, the feeding machine should be stopped and the feeder should be turned off first. After the equipment is running and the machine surface is finished, the mud and stone separator should be turned off. At the same time, the equipment needs to be maintained regularly, such as filling the bearing seat with butter, the reducer filling with lubricating oil, etc.
IV. Equipment advantages
1. Flexible mobility: Some mud and stone separators adopt tires or crawler walking mechanisms, which can move quickly between different construction sites and have strong adaptability.
Two. Easy to operate: The equipment adopts a modular design, and the operation interface is intuitive, which is convenient for non-professionals to quickly master and operate.
3. Low maintenance cost: the equipment is simple in structure and easy to maintain, which reduces the maintenance cost in long-term use.
4. Energy saving and environmental protection: The equipment has low noise and low energy consumption during operation, which meets the environmental protection requirements and helps to reduce environmental pollution.
V. Application field
Mud and stone separator is widely used in many fields such as mining, construction sites, river improvement, disaster relief and environmental management. In mining, it can be used to separate the silt and impurities in the ore; in the construction site, it can be used to treat the excavated dirt and construction waste; in river improvement, it can quickly clean up the sludge and keep the river open; at the disaster relief site, it can be used to clean up the ruins and speed up the rescue progress. At the same time, mud and stone separator also plays an important role in environmental protection management and resource recycling.
>>
