Diesel Boat Engines for Isuzu 4jb1 TF Tfr TFS Pickup 57kw 3600rpm

Product Description

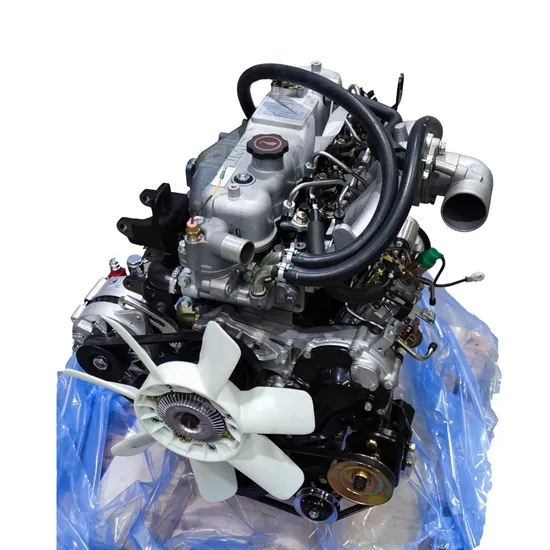

NKR 4JB1 2.8L Diesel Engine With Manual Transmission Gearbox for Isuzu 4JB1 Motor
Product Parameters
Remarks: We can offer all the spare parts for JMC MOTORS with all models, such as New Carrying Light Truck, Conquer Light Truck, Boarding Pickup,Yusheng S350 Pickup and SUV, as well as JMC Ford Transit, JMC Ford Everest, JMC Ford Tourneo, and also Jiangxi Isuzu spare parts inJMCG Group.
We will provide the precise price if you could send with the VIN,part name and part OEM numbers.

Main Data and Technical Parameter
Model	JX493Q1
Application	Vehicle
Number of Cylinders-Bore*Stroke	4-93mm×102mm
Fuel supply	Direct Injection
Displacement	2.771 Liter
Intake Type	Natural Intake
Idle Speed	750r/min
Rated output Power/ Rev	57kW/3600r/min
Max. Torque/Speed	172Nm/2000r/min
Max. Speed	4200r/min
Min. fuel Consumption	224g/kWh
Cold Starting	-20ºC
Starting Motor	1 2V/2.8kW
Generator	12V 80A
Oil Capacity	4.5 ~ 5 liter
Exhaust Temperature	≤600ºC
Fuel Injection Pump	VE Type
Fuel Injection	P type 4 holes
Valve Gap	0.40 ( inlet valve and exhaust valve, cooling)
Inlet Valve Open	24.5ºCA before top dead center
Inlet Valve Closing	55.5ºCA after bottom dead center
ExhaustValve Open	54ºCA before bottom dead center
Exhaust Valve	26ºCA after top dead center
Closing
Injection Beginning Angle	16ºCA/0.5
Net Weight	224kg
Size (L*W*H) mm	737×611×681

Detailed Photos

Quality Testing

Packaging & Shipping

FAQ

1. Could I have prices of your products? Welcome. Please feel free to send us an email here. You will get our reply in 24 hours 2. Can we print our logo/website/company name on products? Yes, MOQ 1set 3. What's the lead time for regular order? 7-15 days for order quantity lower than 1000pc 4. Can I get a discount? Yes, for the order quantity more than 1000 pcs, please contact us to get the best price. 5. Do you inspect the finished products? Yes, each step of production and finished products will be came out inspection by QC department before shipping.

---
