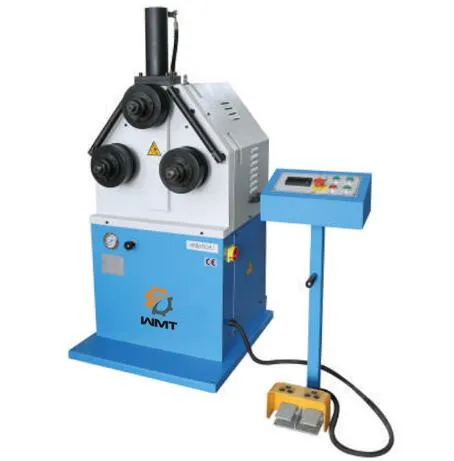

Hydraulic Round Bending Machine (Round Bender HRBM50HV)

US$3,500.00-3,650.00 1 Piece (MOQ)

Basic Info.

Model NO.

HRBM50HV

Condition

New

Certification

RoHS, ISO 9001:2008, CE, CS

Automation

Semi-Automatic

Suitable for

Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Type

Roller-Bending Machine

Dia. of Roller

50mm

Power

Electrical

Machine

Metal Sheet Forming

Application

Machinery & Hardware

Type for Pipe and Tube Bending Machine

Multifunction Rolling Pipe Bender

Type for Fold-Bending Machine

Electrical Bending Machine

Transport Package

Fumigated Exporting Standard Wooden Case

Specification

CE, SGS, ISO9001: 2000

Trademark

WMT or customized logo

Origin

Chizhou, Anhui, China

HS Code

84622990

Production Capacity

100 Sets Monthly

Product Description

Features:
1.The Round bending machine features an electric three-roller-wheel structure.
2.It has the advantage of a two-axis drive. The upper axis can be moved up and down to adjust the diameter of the processed work piece.
3. It can conduct round bending processing for plates, T-shaped materials and so on.
4. Round bending machine has a standard roller wheel, of which the front two types of roller wheel can be used both vertically and horizontally.
5.The reversible pedal switch facilitates the operation.

Model	HRBM50HV	HRBM65HV
Dia .Of roller(mm)	50	65
Power	2.2kw/3HP	2.25kw
Spindle speed	13r/min	9.3r/min
Packing Size	150x95x134cm	125x115x180cm
N.W./G.W.	515/647KGS	720/920KGS

Capacity	Size	Min Dia.(mm)	Size(mm)	Min Dia.(mm)
	60x10 40x10	500 650	80x25 40x10	600 500
	100x15 60x10	920 1150	120x25 50x10	600 400
	35x35 20x20	600 780	50 20	600 400
	60x7 50x5	750 700	80x40x7 40x40x5	500 400
	60x7 50x5	750 700	80x40x7 40x40x5	400 360
	80x45x6 65x40x5	600 550	100x50x6 50x40x5	600 500
	80x45x6 65x40x5	650 550	100x50x6 50x40x5	600 500
	60x5 50x5	500 500	70x6 40x5	500 400
	60x5 50x5	700 700	70x6 40x5	600 500
	35 30	600 650	50 20	600 400
	60x60x3 40x40x3	600 500	70x70x3 30x30x3	900 500
	70x50x3 50x40x3	1200 800	80x40x3 50x30x2	800 500
