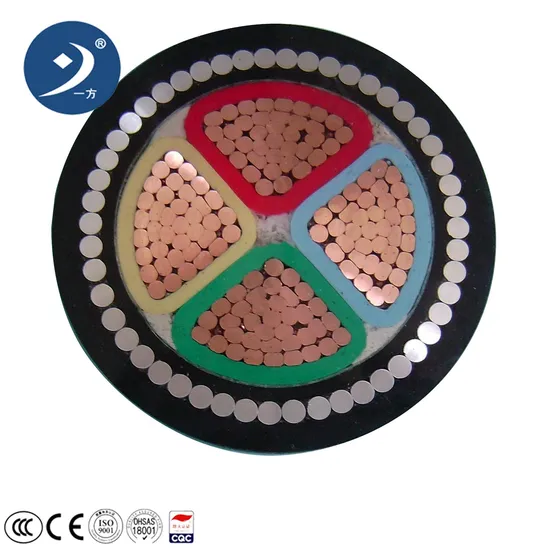

Swa Armored Cable LV Mv Cooper Aluminum Cable XLPE PVC Insulated Lsoh Sheath Termites Resistant Cable

Product Description

Product Description
XLPE Insulated Steel Tape Armoured Power Cable
1. Performance Characteristics:
1. The long-term permissible operation temperature of conductor shall not be higher than 70.
2. Conductor maximum short circuit (not more than 5 seconds) temperature shall not be higher than 160.
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.
Voltage rating: 0.6/1KV 3.6/6KV.
Conductors: Copper or aluminum.
Number of cable cross: One core (Single core), two cores
(Double cores), three cores, four cores (Four Equal-section-area
Cores or three equal-section-area and one smaller section area
Neutral core), five cores (Five equal-section-area cores or three
Equal-section-area cores and two small area neutral cores). We
Provide armored type and non-armored type for the cables stated
Above.
Outer sheath: PVC or PE.
Our company has been carrying out Chinese national standard GB12706 and GB12666.6 (equivalent
To IEC60502 and IEC60331) for PVC insulated power cable and fire resistant cable needed by domestic
Customer, and for foreigner customers we can manufacture in accordance with BS, DIN and other countries
Standards. In addition, we can design and manufacture PVC insulated power cable with special characteristics
According to needs of customers.
Product Details:
Insulation Material PVC
Cu or AL conductor
Steel wire/tape armored or not
PVC or PE sheath
Standards:
IEC AS BS DIN JIS ASTM CSA NFC etc. Product Parameters
Other special characteristics: Design and manufacture according to customers' request

Nominal Cross Section mm 2	1.5	2.5	4	6	10	16	25
Cu core Ohm/km	12.1	7.41	4.61	3.08	1.83	1.15	0.727
Al core Ohm/km	18.1	12.1	7.41	4.61	3.08	1.91	1.2
Nominal Cross Section mm 2	35	50	70	95	120	150	185
Cu core Ohm/km	0.524	0.387	0.268	0.193	0.153	0.124	0.0991
Al core Ohm/km	0.868	0.641	0.443	0.32	0.253	0.206	0.164
Nominal Cross Section mm 2	240	300	400	500	630	800	1000
Cu core Ohm/km	0.0754	0.06	0.047	0.0366	0.0283	0.0221	0.0176
Al core Ohm/km	0.125	0.1	0.0778	0.0605	0.0469	0.0367	0.0291

Detailed Photos
Company Profile
Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Certifications
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.

---
