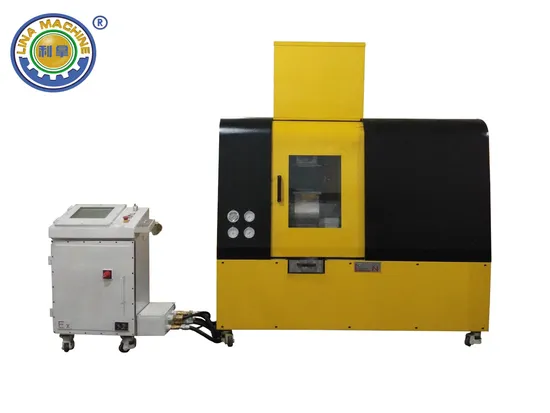

0.5-10L PLC Control Vacuum Kneader Mixing Machine Banbury Dispersion Internal Mixer

Product Description

Working principle: M-W pressing and molding mixing tank is applied to ensure good abrasion resistance and even mixture of materials and optimized change of physical nature. 2-turning design is applied for leakage-proof device to largely enhance leakage proof performance, and the built-in dust collector allows for convenient and quick collection of dusGeneral technical specifications for lab kneader mixer

Model	LN-F-0.5L	LN-F-1L	LN-F-3L	LN-F-5L	LN-F-10L
Mixing capacity (L)	0.5	1	3	5	10
Driving motor (KW)	2.2	3.7	5.5	7.5	15
Hydraulic tilting (KW)	0.75	0.75	0.75	0.75	1.5
Tilting angle (°)	110	110	110	110	110
Air compressor (KW)	1.5	2.2	2.2	2.2	2.2
Water cooling (Mpa)	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Electric heating (KW)	2.8	5.7	6.3	6.3	12
Machine weight (KG)	1000	1200	1200	1400	2000
Dimensions (mm)	1860*1000*2050	1900*1000*2100	2100*1200*2100	2100*1200*2100	2500*1300*2600

Mass Production Kneader Mixer with Different Rotors
LINA Shear Type Dispersion Kneader for Rubber is suitable for a wide range material including high filling rubber, plastic, elastomers, ceramics and mental, and other solids, semi-solid and powder materials. To ensure the maximum dispersion effect, the specification of rotor, top and down ram is optimized. This model of Intermeshing Type banbury mixer, the rotor must be driven by a constant speed connecting gear, the large diameter of one rotor interacts with the small diameter of the opposite. There is ridges on the rotor, the ridges are helically shaped along the rotor to allow the mixing material to move axially within the mixing chamber. Dispersion mixing is mainly carried out in a small gap between two size rotors. For high hardness materials, Tungsten carbide can be casted on the surface of rotors and mixing chamber. In addition, surface that directly contact with the materials is mirror polished which ensures all the materials easy to be cleaned without stickiness and avoid formula lost and pollution. This type of Small Size Banbury Kneader with Intermeshing Type is able to meet the large demand in today`s industry. Intermeshing Type Dispersion Kneader, Intermeshing Type Dispersion Kneader, Intermeshing Kneader For Rubber Mixing, Rubber Intermeshing Type Kneader

Characteristics of Mass Production Kneader Mixer for Rubber
1. Higher cleanness: Clean up the material without dead corners, the mixing chamber and rotors can be separated completely; All surface that directly contact with the material is mirror polished, which ensure all the materials easy to clean without stickiness.
2. Wearable inner cavity: Imported special new alloy steel and Vacuum heat treatment are adopted. Strong wear resistance, resistance to horizontal erosion, corrosion resistance and high glossy finish effects are achieved.
3. Adjustable rotor speed ratio: The speed ratio of rotors is adjustable, which target at some special material function requirements and achieve best dispersion effect and efficiency.
4. Temperature control system: A lot of trials report that stage temperature control has the essential effect of ceramics` color difference.
PLC intelligent control system:
1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. The control system is capable of remote importing of the process recipe and data monitoring, and communicating with MES via Ethernet communication interface.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided
Product Description
Q1:Where is your factory factory?
A1:Guangdong Lina Industrial Co. Ltd. is located in Dongguan City, China.
Q2:What kind of machinery and equipment does your company focus on?
A2:We foucs on rubber&plastic machine.The core products include mixers, open mixers and granulation production lines.
Q3:How do you ensure the quality of your factory's production?
A3:We have senior assemebly and technical team to produce high-level machinery productions.
Q4:What about your after-sales service?
A4:We have experienced overseas service technical engineers who can help you install your machines and support the training of your workers.
Q5:What is your delivery time?
A5:Delivery time depends on the user's choice, usually within 60 days
Q6:How long is your warranty period?
A6:One year.
If you have any further questions, please contact us.

---
