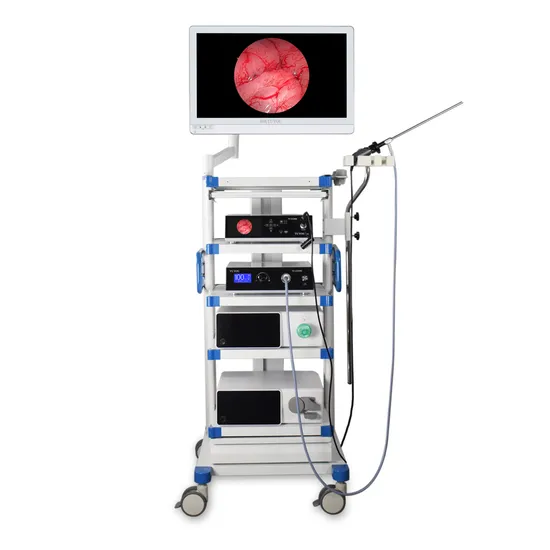

4K Medical Endoscope Camera System Laparoscopy Tower

Product Description

Product Parameters

Product Item No.

TV-D101A(4K Carema)

System Parameters
Input Interface	4K
Output Interface	HDMI/SDI/CVBS
Keypad Control	Control the motherboard menu and shortcut keys through RX/TX
Power	AC110V~240V
U Disk	U disk USB2.0/USB3.0 (up to 32GB) to record and take photos
Shortcut Key Function	Freeze/white balance/video/photograph/digital zoom
SNR(Signal Noise Ratio)	<45db
Working Environment	-10ºC~60ºC
Product Size	L336*W330*H116mm
Net Weight	3.9KG

Camera Parameters
Image Sensor	1/1.8" SONY CMOS
Effective Pixels	3864(H) × 2192(V)Approx. 8.46M pixels
Resolution	SDI 4K
FREEZE	Support
AWB	Support
D-ZOOM	0-8x
Brightness	1-30 steps
Lens Mode	Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T
Language	Chinese, English, Japanese, Korean and other languages
Working Environment	-30ºC~60ºC
Power(Max.) Supply	DC12V ±10%<1.7W
Working Current	250mA±10mA

Products Description Product composition: Endoscope imaging system consists of camera control system, handle camera and optical adapter (Adapter is OPTIONAL parts.) Product Features:
1. Self-contained video recording system,
2. Comes with 6-inch display screen for real-time viewing and playback;
3. Two built-in USB full HD video storage, can be connected to an external monitor;
4. One-key freeze, one-key white balance, one-key zoom in and out;
5. One-key photo/video function;
Customer Feedback
Company Profile Shenzhen Tuyou Medical Imaging Co., Ltd. Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products. Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises. We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
Packing & Delivery
FAQ Q: Are you a factory or a trading company?
A: We are a Chinese medical imaging instruments manufacture. All the products are made of our workers.
Q: Where are you ?
A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.
Q: Can you accept OEM?
A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.
Q: What's your deliver time?
A: It will be delivered within 7 working days upon your payment; Samples are ready-made.
Q: What is the warranty?
A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and
change the fault assembly for free. Q:What's the payment term?
A.We accept payment by T/T Bank Transfer, Western Union, Money Gram, Paypal, L/C, Cash etc.

---
