| US$13,000.00-15,000.00 | 1 Piece (MOQ) |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| GSK980TDC or Siemens 808D NC system inverter motor 7.5kw 4 station electric turret 250 mm manual chuck manual tailstock integrated automatic lubrication system coolant system lighten system | Fanuc 0I mate TD or KND1000Ti servo motor 7.5/11 kw inverter motor 11 kw 6 station or 8 station electric turret 10″Non-through hole hydraulic chuck 10″through hole hydraulic chuck 10″Non-through hole hydraulic chuck (Taiwan) 10″through hole hydraulic chuck(Taiwan) steady rest follow rest ZF gear box |

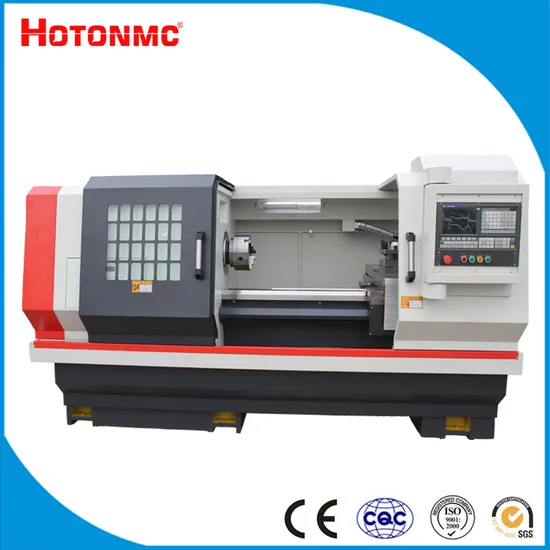

| SPECIFICATION | CK6150 | CK6160 |
| Max. swing over bed | Φ500mm | 600mm |
| Max. swing over cross slide | Φ250mm | 395mm |
| Max. processing length | 850/1500mm | 850/1500mm |
| Spindle bore | Φ82mm | 82mm (130mm optional) |
| Max. diameter of the bar | 65mm | 65mm |
| Spindle speed | 1800 rpm | 80-1600rpm |
| Spindle nose | A2-8 (A2-11 optional ) | A2-8 (A2-11 optional ) |
| Work piece clamping way | 250mm manual chuck | 250mm manual chuck (380 mm chuck optional) |
| Spindle motor power | 7.5kw | 11kw |
| X/Z axis position accuracy | 0.006mm | 0.006mm |
| X/Z axis repeatability | 0.005mm | 0.005mm |
| X/Z axis motor torque | 5./7.5 N.m (7/10N.m optional) | 5./7.5 N.m (7/10N.m optional) |
| X/Z axis motor power | 1.3/1.88kw | 1.88/2.5kw |
| X/Z axis rapid feeding speed | 8/10 m/min | 8/10 m/min |
| Tool post type | 4-station electric turret | 4-station electric turret |
| Tool bar section | 25*25mm | 25*25mm |
| Tailstock sleeve dia. | Φ75mm | 75mm |
| Tailstock sleeve travel | 200mm | 200mm |
| Tailstock taper | MT5# | MT5# |
| N.W. | 2850/3850kg | 3150/4150kg |
| Machine dimension (L*W*H) | 2950/3600*1520*1750mm | 3000/3610*1520*1750mm |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
