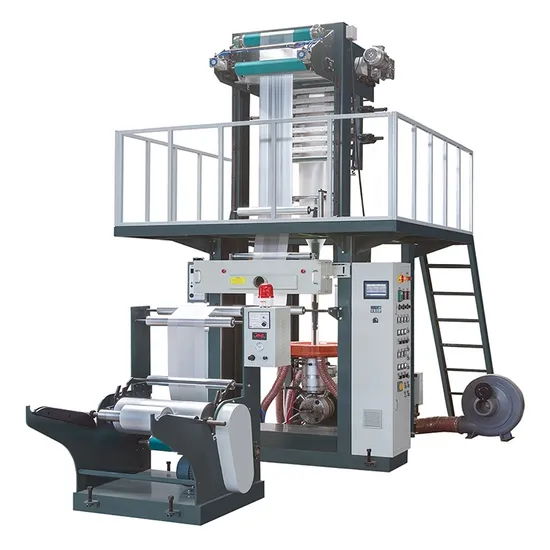

High Speed ABA 3 2 Layer Mini HDPE LDPE PE Blown Agriculture Polyethylene Plastic Bag Film Extruder

Product Description

HERO MACHINE---SINCE 1985
Add:Shangwang Industry Area Ruian Wenzhou,China


Website: herowu.en.made-in-china.com

We have all type of film blowing machine From 50-300KG/hours capacity,with hdpe,ldpe,lldpe,pp,pvc etc:
1.2-5 layer film blowing machine
2.ABA film blowing machine
3.normaly film blowing machine
4.double color film blowing machine
5.mini film blowing machine....
The film for Plastic Bag,Soft Package,Agricultural film,Package Etc
Welcome to contact us!
use:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene
(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Characteristics:
It is used for blowing highlow pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.
OPTIONAL EQUIPMENT:
1)AUTO LOADER 2)AIR COMPRESSOR 3)SPECIAL DIE
4)DIE ROTARY DEVICE 5)DOUBLE SIDES WINDER 6) UP AND DOWN

Model	A50	A55	A60	A65
Diameter of screw	φ50	φ55	φ60	φ65
Diameter of film(mm)	100-600	200-800	300-1000	400-1200
Single-face Thickness of film(mm)	0.01-0.10	0.01-0.10	0.01-0.10	0.01-0.10
Max .Extrusion(Kg/h)	35	50	65	80
L/D	26:1	26:1	26:1	26:1
Power of main motor(kw)	7.5	11	15	18.5
Power of Tracion main motor(kw)	0.75	0.75	0.75	0.75
Heating Power(kw)	11	13	19	21
Outline diameter(L x W x H) (mm)	4800 x 1900 x 4100	5500 x 2100 x 4700	6500 x 2300 x 4900	6500 x 2500 x 5600
Weight(T)	1.5T	2T	2.3T	2.6T

HERO MACHINE---SINCE 1985
Add:Shangwang Industry Area Ruian Wenzhou,China


Website: herowu.en.made-in-china.com

---
