Mini Digger with Snow Removal Blade

Product Description

MAIN PARAMETERS
Emission Standard	Euro 5,EPA4
Make /Model	KUBOTA/D1703
Power /Rotation speed	18.5kw(25HP)@2200rpm
Number of cyinder	3
Type	In-line,water cooled,4-stroke,mechanical pump,normally aspirated
Max.torque
Displacement	97.4N.m/1500rpm1.642L
TRACK DRINING SYSTEM
Maximum Travel speed(High/low)	4.4/2.4km/h
Width ofsteel track shoe	300mm
Carrier roller(Each side)	1
Supporting roller(Each side)	4
PERFORMANCE PARAMETER
Standard Budketcapacity	0.12m3
Swing speed	12rpm
Maximum Gradeability	58%(30°)
Ground pressure	32Kpa
Maximum Bucket digging force	30.4KN
Maximum Arm digging force	18.2KN
Hydraulic system pressure	22.5Mpe
Machineweight	3810kg
Boom length	2535mm
Arm length	1400mm
Fuel tank capacity	40L
Hydraulic oil tankcapacity	44L
Engine oil capacity	7L
Radiator capacity	3.8L
Final drive	2*0.7L
MIA CHINE SIZE
Overall dimension (L*W*H)	4915mm*1720mm*2525mm
Axle base(Track length on ground)	1670mm
Length of rubber track	2154mm
Track gauge	142.0mm
Minimum Ground clearance	295mm
Swing radius at tail	860mm
Swing radius at front	2538mm
Height of blade	350mm
WORKING RANGE
Maximum Digging height	4800mm
Maximum Dumping height	3406mm
Maximum Digging depth	3208mm
Maximum Vertical digging depth	2957mm
Maximum Digging distance	5480mm
Maximum digging distance (on ground)	5359mm
Minimum swing radius	2530mm
Max.height when min.swing radius	3655mm
Maximum Lifting height of blade	365mm
Maximum Cutting depth of blade	385mm
Boom swing angle(Left/Right)	55°/65°

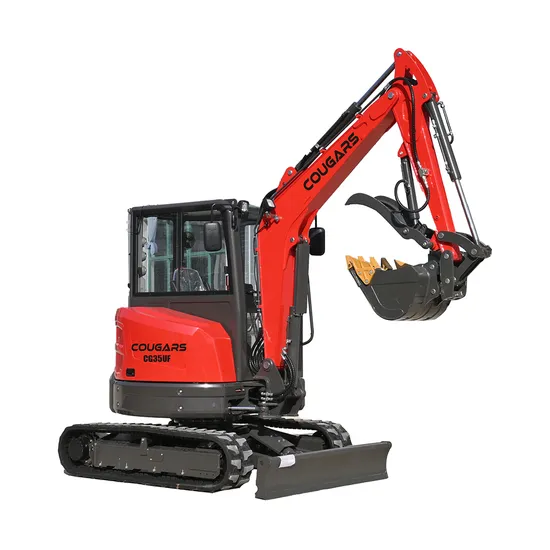

COUGARS 3800KGS Mini Crawler Excavator Discover the unparalleled power and efficiency that the COUGARS 3800KGS Mini Crawler Excavator brings to your projects. Engineered to handle the most rigorous tasks effortlessly, this excavator is crafted with premium components and innovative design, ensuring outstanding performance that exceeds expectations.
Equipped with a dependable Kubota diesel engine, this excavator guarantees seamless operation and robust hydraulics. Its compact 3.5T size makes it the ultimate all-rounder, delivering impressive breakout force and digging capabilities while remaining portable, ensuring easy transportation to various job sites.
The COUGARS series of excavators are celebrated for their exceptional performance and remarkable value. With a powerful 10kN excavating force and a standard 400mm bucket, this machine is primed to tackle any challenge you throw its way, providing reliability and efficiency beyond measure.
Effortlessly maneuver the COUGARS 3800KGS Mini Crawler Excavator with intuitive joystick and lever controls. Its rugged steel construction, crafted with precise CNC laser-cut technology, offers unmatched durability and reliability, making it an indispensable tool for any project.
Boasting full functionality, including traverse, swing, boom swing, and dig, this versatile excavator is compatible with a variety of attachments, such as augers, rock breakers, and grapples, enhancing its adaptability to a wide range of tasks.
Enjoy peace of mind with straightforward key start ignition and a comprehensive 1-year warranty. COUGARS Machinery prioritizes delivering superior quality at an accessible price, making their excavators the perfect choice for both commercial professionals and small property owners.
Powered by a Kubota water-cooled diesel engine renowned for its top-tier performance and fuel efficiency, the COUGARS 3800KGS Mini Crawler Excavator is the smart investment for small to medium businesses seeking to optimize their returns.
With high specifications and premium components, the COUGARS 3800KGS Mini Crawler Excavator stands head and shoulders above the competition. Its enhanced heavy-duty hydraulic oil pump promises extended operational life, while authentic USA Eaton drive and swing motors ensure smooth, controlled performance.
Featuring hydraulic control valves for fluid operation and joystick controls paired with a full weather cabin, this excavator offers a comfortable and enjoyable experience, allowing operators to work efficiently and effectively in any weather.
Constructed to the highest industry standards, the COUGARS 3800KGS Mini Crawler Excavator boasts CNC laser-cut steel sections, ensuring precision and strength. Its proven design delivers consistent performance and reliability, making it the optimal choice for any demanding excavation task.

Boost your excavator's capabilities with a wide array of premium attachments and accessories. COUGARS® excavators feature an innovative quick coupling design for easy interchange of attachments, providing flexibility for various jobs. With the option to purchase or rent additional attachments, your machine's potential is limitless.
Each unit comes equipped with a standard 400mm bucket, offering a solid base for all your excavation needs. For specialized tasks, choose from an extensive selection of optional attachments to enhance your machine's versatility.
Buckets for Trenching and Bulk Materials Movement
The Series 35 machines accommodate a diverse range of bucket sizes, ensuring efficient trenching and the swift movement of bulk materials, adapting to your project's specific needs.
Ripper Attachment
Effortlessly penetrate hard ground and conquer stubborn tree roots with the ripper attachment. Its durable hardened steel ripper tip, reinforced with robust steel plates, ensures longevity and reliability for the most challenging tasks. Augers for Digging Holes Outfit your excavator with an auger drive to efficiently drill holes for a variety of applications, including tree planting, foundation construction, and post installation, streamlining your projects.
Rock Breaker Effortlessly shatter large rocks into manageable pieces with the rock breaker attachment. This versatile tool is also ideal for breaking up old concrete driveways and footpaths for easier handling. The rock breaker connects via the quick coupling at the hitch, leveraging auxiliary hydraulic connections for convenience. Actuating Grapple
Unleash the full potential of your excavation tasks with our innovative actuating grapple attachment! This versatile tool functions as a dynamic 4-in-1 bucket, empowering your excavator to effortlessly grip, lift, roll, and maneuver objects into precise positions. Perfectly suited for forestry operations, it excels in clearing brush, lifting logs, and managing branches with ease. Please be advised that attaching this marvelous grapple might take a tad longer. It operates using the excavator's robust ram, necessitating the manual insertion and removal of pins, as opposed to the swift convenience of a quick hitch connection. Excavator Rake
Transform your green waste management with our remarkable excavator rake attachment! Ideal for efficiently moving green waste, this tool effortlessly piles it for decomposition or burning. Moreover, it stands as a formidable ally against stubborn vegetation like lantana, ensuring a cleared and pristine landscape. In the realm of machinery, settling for anything less than excellence is simply not an option. That's why COUGARS excavators are engineered with unwavering commitment to quality, utilizing only the finest materials. Embrace a machine that's crafted not just to meet, but to exceed longevity standards. Invest in a companion for life.
Discover the unparalleled power and adaptability of the COUGARS 3800KGS Mini Crawler Excavator for USA! Boasting a compact, intuitive design, a reliable Kubota engine, and an array of diverse attachments, this excavator stands as the quintessential solution for all your excavation endeavors. Experience unmatched performance and versatility like never before.

---
