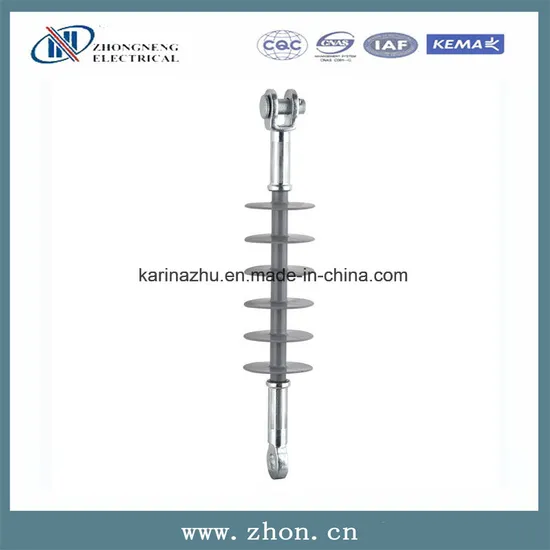

High Voltage Suspension Composite Polymer Long Rod Insulator

Product Description

24KV Compsoite Suspension long rod Insulator
Characteristics:
-Small volume and light weight, easy to transport and install
-The superior in performance and high intensity mechanical enhance reliability of power line
-Extraordinary hydrophobic and resistance to contamination
-Long-duration resistance aging and leakage tracking
KEMA,CNAS,CNAL, ISO9001 certificates

Product Model	Rated voltage (kV)	Rated mechanical bending load (kN)	Structure height (mm)	Min. arcing distance (mm)	Min. nominal creepage distance (mm)	Uimp wts (peak) (kV)	Uw. 1min wts (peak) (kV)
FXBW-24/100	24	100	450	235	643	150	65

---
