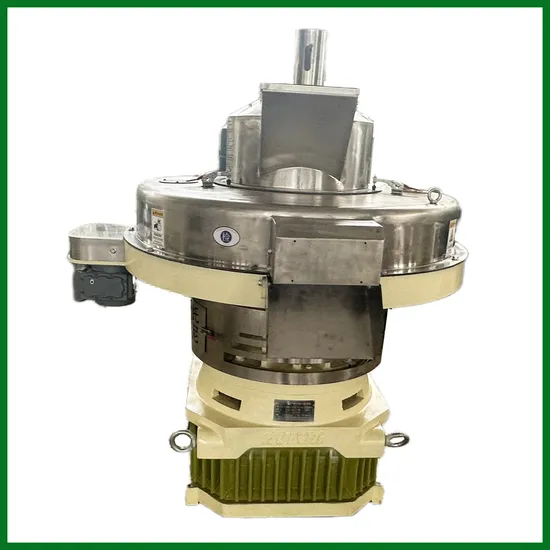

2-2.5tph Capacity Ring Die Biomass Wood Pellet Mill Biomass Pelletizing Machine

Product Description

2-2.5TPH Capacity Ring Die Biomass Wood Pellet Mill Biomass Pelletizing Machine
Product Description
Wood Pellet Making Machine ApplicationTony biomass wood biomass wood pellet mill is mainly used for medium and big process plant. Wood pellet mill is a new generation of energy-saving green power products, researched and developed by our researcher newly. Wood pellet mill is mainly used to compress crushed wood, corn straw, plant waste, bamboo powder, grass, straw, rice husk etc. into pellets. Machines adopt bipolar speed adjusting, and have the characteristics of low power consumption, reasonable structure, economic and durable.
Main Features for wood pellet making machine1). TONY wood biomass pellet mill machine price are mainly used for pelletizing all kinds of biomass pellets, such as wood sawdust, straw, rice husk and coffee husk etc.
2). The main drive adopts high precision gear driving and the capacity is increased by 20% than belt drive.
3). Super quality bearing and oil seal to ensure high efficiency, stability and low noise.
4). Vertical die ,feeding vertically;No arching of raw materials ,easy for heating dissipation.
5). The pellet press adopts double-layer dies ,up and down dual-use ,high capacity ,saving energy.
6). Die fixed,rollers rotating ,materials centrifugal ,evenly distributed around.
7). TONY wood biomass pellet mill machine price adopts independent and frequency changeable cutting device,ensure formation rate of pellets.
Requirements for raw materials of wood pellet making machineRaw material: wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree), bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagasse, palm fiber, waste paper, non-physical material
Size: Less than 5mm (All the raw materials must be crushed into sawdust before going to wood pellet machine.If not, you may need a wood chipper, wood crusher.)
Moisture:Generally, 10-15% is best for producing good quality wood pellet.

Model	Power(KW)	Capacity(T)	Weight(T)	Size(mm)
TYJ551-III	90-110	1-2	5.5	2364*1550*1705
TYJ551-III	132	2-2.5	5	2364*1550*1705
TYJ760-III	160/185/200	2.5-3.5	9	2564*1750*2150
TYJ860-III	220-250	3-5	13.5	2664*1950*2150

Detailed Photos
Installation Instructions

Certifications
Packaging & Shipping
Company Profile
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mills, feed pellet mills, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.
We can supply the machines as following:
1.The SKJ Series flat die pellet mill with the volume 100kg per hour to 4 ton per hour.
2.The TYJ Series ring die pellet mill with the volume 800kg per hour to 5 ton per hour.
3.The SKJD Series Pellet Mill with Diesel Engine with the volume 100kg per hour to 400kg per hour.
4.The SKJT Series Pellet Mill with Tractor Engine with the volume 80kg per hour to 400kg per hour.
5.Straw Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from the volume 0.5 ton to 20 T/h.
TONY'S Exhibition
After Sales Service

---
