Product Details
Product Description
Product Description
Product Introduction

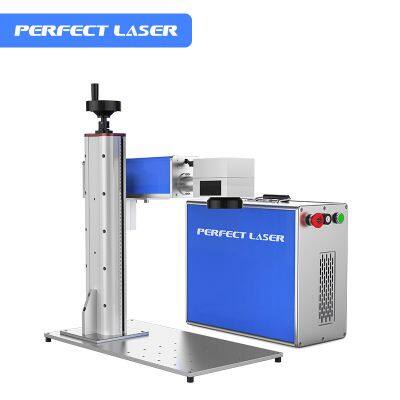

The laser ring engraving machine is a new generation laser marking system developed with the world's most advanced laser . It uses fiber laser source and the high-speed scanning galvanometer system to realize the marking function. Jewelry laser marking electromechanical light conversion efficiency is extremely high with high reliability. Cooled by air cooling. The laser ring engraving machine`s overall size is small.
When it comes to rings and jewelry, there is no doubt that they are an indisputable part of our daily lives. They are becoming more and more popular not only because they make us feel stylish and beautiful, but also because it is a promise or symbol of love for couples. Different people have different preferences for rings and jewelry. Couples like to mark lover's names or special dates on rings and jewelry.
People pursuing fashion may like to mark special letters or patterns. As a result, laser marking machines are increasingly used for the marking of rings and jewelry. Laser ring engraving machine is not only practical but also meets the needs of the times and people.
Product Features
1. Laser ring engraving machine can work continuously for 24 hours without consumables. More than 10,000 hours service time can meet long-term and stable work requirements. The laser ring engraving machine `s laser beam is stable.
2. Gold laser marking machine equipped with special rotary system to support mark on ring. You can finish marking inside or outside to keep your perpetual signs.
3. Laser ring engraving machine powerful software compatible with Coreldraw, AutoCAD, Photoshop and other software files which can support PLT, PCX, DXF, BMP, etc., can use SHX, TTF font directly;
4. The gold laser marking machine structure has been greatly improved: the optical system adopts a fully sealed structure with a red light preview function, a more beautiful appearance and a more convenient operation.
5. The photoelectric conversion efficiency is high, the beam quality is good, the lines are fine, the spot is small, and the laser has long service life, the laser ring engraving is specially suitable for jewery marking.
6. The laser ring engraving is equipped with the latest precision constant temperature chiller, low operating noise, high temperature adjustment accuracy, and provides a reliable guarantee for the continuous operation of the machine for a long time.
7. Jewellery laser marking machine high-speed scanning galvanometer, suitable for industrial mass production. No mechanical stress, small thermal stress, no damage to the processed material, no deformation. To maintain your best jewery effect.
Application
1. This jewellery laser marking machine can mark metal and a variety of non-metallic, the laser ring engraving machine is suitable for some materials with finer requirements, higher precision and deep processing.
2. The laser ring engraving machine is widely used in metal products, tool accessories, precision instruments, eyeglasses and watches, jewelry, auto parts, plastic buttons, building materials, food, medicines, electronic components, integrated circuits (IC), electrical appliances, mobile communications, PVC Pipe, medical equipment, sanitary ware and other industries.
Technical Data
Model No
| PEDB-400A
| PEDB-400B
| PEDB-400C
| PEDB-400D
|
Type
| Portable
| Desktop
| Colorful
| Standby
|
Computer
| Not includes PC
| Includes PC
|
Laser Source
|
IPG Series
| Pulsed, High Energy Ytterbium Fiber Lasers
|
Mode of operation
| Pulsed
|
Polarization
| random
|
Nominal average output power
| 20W - 50W For PEDB-400A /400B /400C
20W - 100W For PEDB-400D
|
Central emission wavelength
| 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
|
Emission Bandwidth
(FWHM)
| <10 nm
|
Long-term average power instability
| <5%
|
Pulse width, (FWHM)
| 100 ns
|
Laser switching ON time
| 180 μsec
|
Laser switching OFF time
| 180 μsec
|
Pulse Repetition Rate* kHz
| 20-80 kHz
|
Energy per pulse (PRR = 20 kHz)
| 0.95 mJ
|
Typical beam quality, M2
| <1.8
|
Output fiber delivery length
| 3m
|
Operating voltage
| 220V
|
Max. Power consumption
| 600W
|
Net Dimensions
| 70*20*50cm
| 80*38*72cm
| 70*20*50cm
| 143*62*101cm
|
Net Weight
| 44 kgs
| 53 kgs
| 44 kgs
| 130 kgs
|
Gross Weight
| 60 kgs
| 70 kgs
| 60 kgs
| 200 kgs
|
Laser system
|
Scanning Speed
| 0-10000mm/s
|
Marking Speed
| 0-7000mm/s
|
Marking size
| 110mm×110mm (F-theta 160)
|
Spot size
| ≤ 40 micron (F-theta 160)
|
Cooling unit
| Air cooled
|
Pilot laser
| 650nm diode laser, visible red light for marking guide
|
Continuous working time
| ≥16h
|
Humidity
| 45～85% (no condensation)
|
Operating temperature
| 0~40℃
|
Control units
| Laser Mark (English Version)
|
>>
