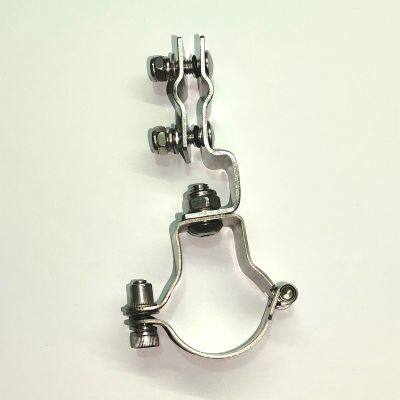

Steel wire rope hanging fire-proof clamp for 1-1/4 radiating cable
PRODUCT DESCRIPTION
It is used for the installation of highway, low-speed railway tunnel and indoor signal coverage Radiating Coaxial Cable. It has the advantages of simple, safe and efficient, and can meet the requirements of less than or equal to 200km/h train speed requirements.
It is suitable for 1-1/4 " Radiating Coaxial Cable, fixed Radiating Coaxial Cable orientation, clamping Radiating Coaxial Cable to prevent its movement.
All metal parts are made of high quality 304 or stainless steel, We can also provide 316 stainless steel material according to customer needs.
It is fixed on the cable outside the tunnel through the cable lifting clamp, and the clamp is firmly held with the steel wire bearing cable, and the spreader does not slide along the axis of the steel wire bearing cable.
Halogen free and environmentally friendly. Compliant with ROHS.
TECHNICAL INDEX
Character of service
Ambient temperature during use : －45 ℃～＋85 ℃
Ambient temperature during installation: －20℃～＋60 ℃
Relative humidity for reliable operation: RH≤95%
Environmental performance
low temperature, -40 ℃±2 ℃, 72h No crack
high temperature, 150 ℃±2 ℃, 72h No crack
GDJS，25 ℃±3 ℃，＋80 ℃±2 ℃，（93±3）%，24h,10 times No crack
Salt spray resistance property，35 ℃±2 ℃，5 %，240 h No red rust
Solar radiation resistance No powder
Mechanical Specifications
Maximum Load 5000N
MATERIAL INFORMATION
metallic parts 304 Stainless steel
Cable compatibility
Compatible radiating cable diameter, minimum 36mm
Compatible radiating cable diameter, maximum 39mm
Nominal Size 37.5mm
Recommended / Maximum Clamp Spacing 10m
Minimum Distance to Wall 80mm
>>
