Perfect Laser-UK Gsi Die Board Laser Cutting Machine

Product Description

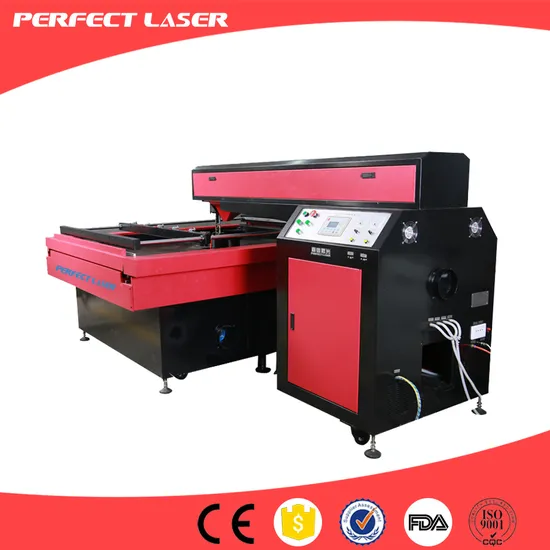

Perfect Laser-UK Gsi Die Board Laser Cutting Machine

1. Introduction
Die Board Laser Cutter with GSI Laser PEC-1225GSI with working area 1200x2500mm, Laser Power 260W.
Compact design, High efficiency, Excellent quality, Low maintenance and Low running cost, PEC-1225GSI designed by Perfect Laser is specialized in cutting die board up to 25mm meanwhile can slightly in thin metal ( cutting metal as option).
Auto Following and Focus System designed by Perfect Laser is one of key elements to successfully cut die board. Auto Following and Focus System can automatically senses the distance from cutting head to die board being cut and then adjust the focal position to keep a good cutting quality.
PEC-1225GSI is equipped with luxury equipments, including UK 260W GSI CO2 laser tube, Tempering heat treated lathe bed, Imported ball screws and guide rail, Panasonic servo motor etc, which can guarantee the high-speed and high-precision, and make the machine long operating life.
DSP off controlling system make the machine free from computer, which convenient for you to control machine during working.
2. Applied Field
Widely used professionally to cut wood, plastic, organic glasses to make cutting dies of many fields including packages, handicrafts, advertisements etc. It can cutting thick material only once while other machine can not realized. For the common material: Wood, the maximum thickness is 25 mm.
3. Features
* Advanced LCD Touch Screen+ USB port+ DSP Offline Control
*Auto Following and Focus System
*UK 260W GSI CO2 laser tube with unparalleled beam quality, effienciency and longevity.
*Imported ball screws and guide rail, Panasonic servo motor, which can guarantee the high-speed and high-precision.
*Tempering heat treated lathe bed , which is not easy to be deformed.
*The single-head cutting and flight optical path make the adjustment of optical path more sample and reliable.
*The thickness of 15MM, 18MM, 20MM 25MM die-board can be cut arbitrary width, such as 0.45, 0.71, 1.05, 1.42 etc. Kerf uniform, consistent from top to bottom seam. Once turned on, the machine can work without waiting time.
* Low cost and no gas consumption, only consume 7.5KW/H power.
4. Technical Parameters

Type	PEC-1225GSI
Cutting Area	1200*2500mm
Laser Power	GSI 260W
Laser Type	Hermetic and Detached Co2 Glass Laser Tube
Lifetime of laser tube	more than 10000 hours
Cooling mode	Water cooling and protection system
Cutting Speed	10 -6000mm /min
Repeated Position precision	+- 0.05mm
Maximum Cutting Depth	25mm
Cutting Width	0.35mm -0.75mm adjustable, > 0.75mm adjustable
Support Format	HPGL,PLT,AI,DXF etc.
Controlling software	DSP control system
Compatible software	CorelDraw, AutoCAD, Photoshop
Driving system	Panasonic Servo
Machine Power	5KW
Working voltage	AC 220V(+/-10%) 50-60Hz
Operating temperature	0-45 degree
Operating humidity	5-95%
Whole machine size	3350*2220*1110 mm

Working Video, PDF detailed description and quotation will be sent to you upon your inquiry!!! Contact me by >>>>>>>>>>>>>>>>>>>>>>>>>>
Perfect Laser Co., Ltd. (China)
Contact: Bella / Sales Department



Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).

---
