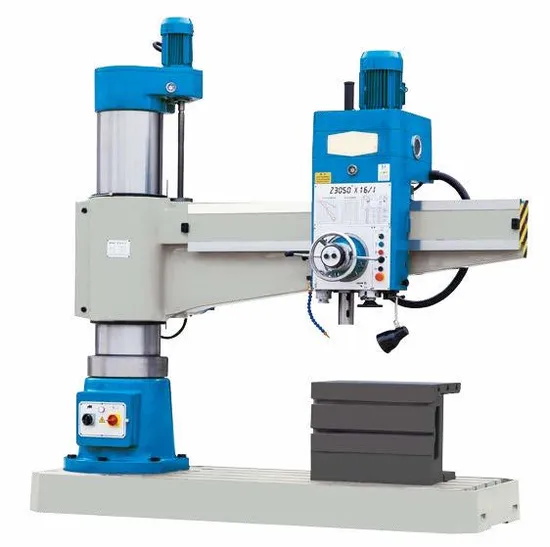

High Precision, Hot Sale, Radial Drilling Machine, CNC Machinery.

Product Description

Product Description
Product Parameters

	Specifications	Units	Z3032×10/1	Z3040×13/2	Z3050×16/1	Z3063×16/1	Z3063×20/1	Z3080×25/1
	Max. drilling diameter	mm	32	40	50	63	63	80
	Distance between spindle axis and column	mm	300- 1000	300- 1300	350- 1600	400- 1600	450-2000	500-2500
	Distance spindle nose and working surface of base	mm	250- 1000	300- 1120	320- 1220	190- 1170	400- 1600	550-2000
	Spindle travel	mm	280	280	315	400	400	450
	Spindle taper	Morse No.	4 #	4 #	5 #	5 #	5 #	6 #
	Range of spindle speeds	rpm	32-2500	32-2500	25-2000	20- 1600	20- 1600	16- 1250
	Number of spindle speeds	step	16	16	16	16	16	16
	Range of spindle feeds	mm/r	0. 10- 1.25	0. 10- 1.25	0.04-3.20	0.04-3.2	0.04-3.2	0.04-3.20
	Number of spindle feeds Max.tapping dia Max.output torque Arm hoisting distance Arm elevating speed Table size	step steel Cast iron N/M mm m/s mm	8 M24 M24 200 470 0.021 550×400 ×400	8 M27 M30 250 540 0.021 600×450 ×450	16 M36 M36 500 580 0.02 630×500 ×500	16 M36 M36 800 580 0.02 630×500 ×500	16 M42 M42 800 800 0.018 800×630 ×500	16 M48 M52 1568 1000 0.017 1000×800 ×560
	Distance of headstock horizontal movement	mm	700	1000	1250	1200	1600	2000
	Spindle motor power	Kw	2.2	3	4	5.5	5.5	7.5
	Machine weight	Kg	1600	2500	3500	3700	7000	11000
	Overall dimension	mm	1760×800 ×2300	2100×900 ×2490	2500×1070 ×2840	2540×1070 ×2960	3080×1250 ×3400	3730×1400 ×4025

Detailed Photos
Our Advantages
Who We Are?
Founded on March 30, 2016, HANMING aims to provide customers with excellent products and services and industrial complete equipment solutions.
HANMING has always been standing in the perspective of every customer to deal with problems and ensure the timely and efficient handling of problems. Our salesmen are experienced senior marketing engineers who have been working in the industry field for many years, and our inspectors are technical engineers, which ensure our professionalism. Our products are mainly metal cutting machine, metal forming machine and other industrial equipment.
What Do We Can Do?
The core competitiveness of HANMING is having a strict quality management system and a team that can provide excellent services. We are familiar with the machine tool industry in China and know the positioning of products in various factories. We will select the most suitable machine tools for customers and ensure that after the completion of the machine tool, we will send quality control team to each factory for inspection to ensure that the machines delivered to customers are high-quality products that have been inspected. Our inspectors are also after-sales service personnel to ensure that every after-sales service problem can be timely communicated with each factory and give timely feedback.
Our Aim:
Relying on the keen market insight, HANMING makes forward-looking decisions on the changeable market and actively deals with and overcomes the difficulties encountered by the enterprise in various periods. Today, a steady and pragmatic team leads Hanming forward to open up a new world in the industrial export industry.

---
