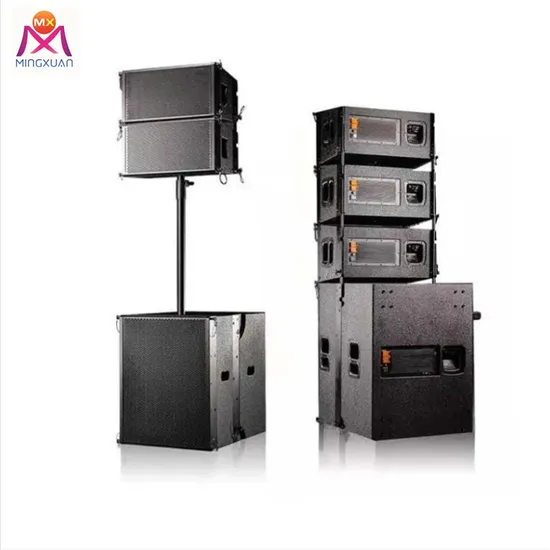

Professional Active Audio 12 Inch Subwoofer 2 Way Line Array Powered Speakers

Product Description

Product Description
Product specification
Top :A3,active 2-way single 12" line-array,
HF: 2x2.4"Neo,8ohm 160W,Original Celestion Driver(CDX4-2420)from UK ,neodynium
LF: 12"Neo,500W ,Original Paudio Driver ,neodynium
With 2 channel amplifier,Class-D,output power:600W+1200W,with built-in DSP made in Germany

Configuration	1*12inch MF+2*2.4inch HF
Power(AES/Peak)	MF:500W/2000W/ HF:160W/320W
Impedance	4Ohm/ 4Ohm
Sencitivity (1 W/m)	MF:106dB/HF:116dB
Rated Maximum SPL	MF:130dB/HF:136dB ( peak@1m)
Dispertion angle(V x H)	H120°x V20°
Input Impedance	20 KΩ
Input Sensitivity	0.775V
Amplifier Output Power	600W+1200W/4ohm
Power Connector	Power Con
Operating Voltage	90~ 120V/190~ 240V
Damping Factor	≥400
Weight	24Kg
Shipping Size	582x414x 343mm

Sub :A3-sub,active single 18" line-array,
Configuration: 18",800W
With Class-D,output power:1200W,with built-in DSP made in Germany

Specification
Technical parameters

Configuration	1*18inch
Power(AES/Peak)	800W
Impedance	8Ω
Sencitivity (1 W/m)	102dB
Rated Maximum SPL	131dB ( peak@1m)
Franquency Range	35Hz- 220KHz (+3dB)
Input Impendance	20 KΩ
Input Sensitivity	0.775V
Amplifier Output Power	1200W/8ohm
Power Connector	Power Con
Operating Voltage	90~ 120V/190~240V
Damping Factor	≥400
Weight	49Kg
Shipping Size	582*838x 800mm

Company Information Branch Company - Guangzhou MingXuan Audio Co., Ltd was established in 2012. Mingxuan Audio is focus on high quality audio products such as speaker, amplifier, mixer, microphone, especially outdoor high-power active speakers.
There are professional design team, sales team, customer service team and technical team to service all customer . Based on high quality & competitive prices & better service, our products have entered the Americas, Europe, Asia, Africa markets successfully, such as USA, Canada, UK, Germany, France, Singapore, Japan, Nigeria etc, and get good feedback.
Our Service 1. Provide professional person to communicate with you before the order.
2. Provide strict quality check for each part, each process before export.
3. Provide optimum system solution based on each client's specific requirement.
4. Provide complete post-sale service, including installation, technical guide and training.
Packaging & Shipping You can choose flight case packing
FAQ Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.

Q:What is your product range?
A:We are mainly offer all kind of stage lighting and audio-visual equipment etc.
Q: Can you help me to print our logo or company name on the products or package?
A: Of course. Your logo can be printed on the products or package.

Q: If the products broken during the warranty, what should I do?
A: If there is a problem with the products, please describe it and send videos or pictures to us to analyze. Then we will guide you how to fix it and provide spare parts on free if needed.

---
