Portable Gangway Folding Stair for Oil Tank Platform

Product Description

Portable Gangway Folding Stair for Oil Tank Platform
Folding stairs (be also known as folding stairway, foldable stairs, foldable staircase, retractable stairs,etc) is specially designed to provide safe and efficient means of access between a loading platform and road or rail tankers.

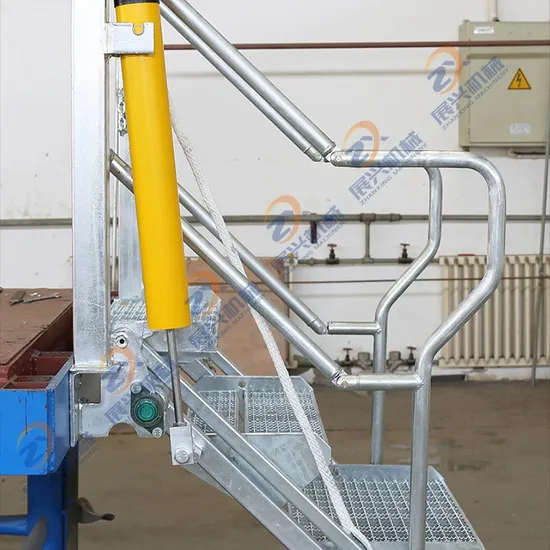

The principle is a four-bar mechanism, parallelogram shaped, keeping each treadle parallel to the ground during stair rotation in order to make sure that the operator standing upright while walking.
Over-turning moment keeps balance by spring cylinder consisting of several sets of inbuilt spring, saving labor during folding and unfolding operation. It mainly consists of the treadle, handrail, spring cylinder balance system, and locking mechanism, featuring novel structure, easy operation (by one person), reliable and safe operation.
The body is galvanized with nice appearance, anti-corrosion, and durability. The treadle is made from dentiform grid plate with good non-skid performance. Contact area employs oil-resistant rubber part to prevent from the spark caused by the collision.
Folding Stairs Applications: Safe access from fixed platforms to the top of a Road Tanker, Rail Tank Wagon, or ISO Container to:
Inspect the tanker for safety and maintenance Load the tanker by loading arm (what is loading arm?) Check the load and take samples Wash or decontaminate compartment Folding Stairs Features: Fully balanced self-leveling steps to automatically adjust to varying tanker heights Full galvanized treatment, anti-corrosion, rust-proof and durable Safety handrails and knee guards fitted as standard Hinged safety step to protect against accidentally trapping toes Pull-rope to assist returning stairs to 'parked' position Vertical locking device (optionally offset) for 'parked' position with foot-pedal release Extended outboard step to provide additional area and stability, for stepping onto the tanker top Rubber bumper to prevent sparking and reduce risk of tanker damage Typical Models of Zhanxing Folding Stairs:

Model	No. of Steps	Step Width (mm)	Extended Length (mm)	Safety Cage	T. Weight (kgs)
GL800-3	3	800	1250	/	195
GL800-4	4	800	1650	/	245
GL800-5	5	800	2050	/	270
GL800-3S	3	800	1250	with	220
GL800-4S	4	800	1650	with	260
GL800-5S	5	800	2050	with	295
GL600-3	3	600	1250	/	115
GL600-4	4	600	1650	/	137
GL600-5	5	600	2050	/	165

---
