High Precision Industrial Metal Drilling Equipment for H Beam Structures

Product Description

ZMDE High Precision Building H Beam Structure Industrial Metal Drilling Equipment
------------------------------------------
>Experience cost-efficiency redefined with our cutting-edge equipment.
1. Crafted from robust materials with an impressively low failure rate, our equipment cuts down maintenance costs. Featuring industry-leading components like ball screws, linear guides, hydraulic parts, electrical components, servo motors, and frequency converters.
2. The CRT display facilitates automatic chip removal, eliminating the need for manual cleaning and saving valuable time.
3. Boasting exceptional precision, our equipment ensures a high qualification rate of workpieces, significantly reducing consumable costs.
>Effortless operation, unmatched productivity.
1. Our intuitive human-machine interface simplifies operations, automatically generating machining programs.
2. Precision is guaranteed with CNC and PLC controls, ensuring accurate positioning every time.
3. Hydraulic clamps securely hold workpieces, and the operator can effortlessly control them using a foot switch, enhancing convenience and reducing labor.
4. Twelve rapid-action hydraulic clamps distributed around the table enable simultaneous clamping of four workpiece groups, boosting productivity.
5. Small workpieces can be strategically clamped at the table's corners, significantly reducing production preparation time and enhancing efficiency.
6. The ability to clamp small workpieces at the four corners of the table further shortens production preparation cycles, optimizing efficiency.
> Assured quality and versatile applications.
1. With essential components like the gantry, column, and table constructed from solid materials, the main machine's weight reaches up to 6300kg, ensuring durability.
2. Our versatile equipment is indispensable for connecting plate processing across various industries.
3. Accommodates a wide range of drilling diameters, from 12mm to 50mm, for diverse applications.
> Adaptable to numerous production scenarios.
1. Ideal for the continuous production of multiple batches of single flat-type workpieces.
2. Perfect for small batch production involving various workpiece types. Capable of processing plates in multiple shapes, including rectangular, circular flanges, and polygons, and handling up to four different specifications simultaneously.
3. Efficiently produces multiple layers of thinner sheets stacked up to a maximum drill depth of 100mm.
4. Utilizes upper computer software to automatically manage processing start and end points, enabling drilling of through holes, blind holes, step holes, and chamfering.
> Streamlined production process automation.
1. Integrated line board technology ensures a high degree of automation, with automatic positioning based on the drilling program.
2. Adjusts the optimal feeding volume to match different hole diameters for precision drilling.
3. Capable of automatic, continuous processing of large hole diameters, achieving one-time processing and molding.
4. Equipped with an automatic chip removal function for seamless operation.
Technical Parameters

Machine Configuration

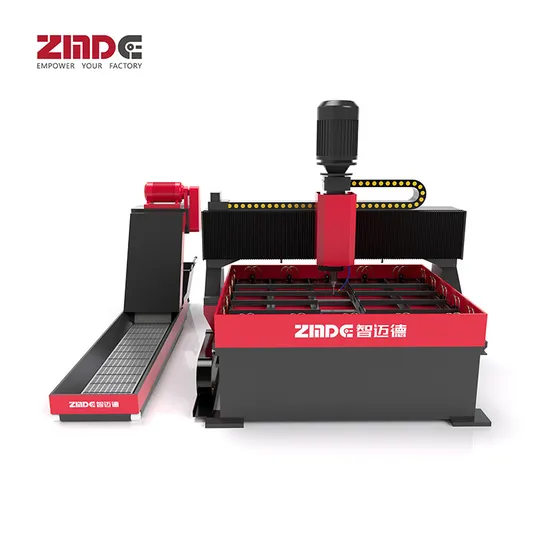

High Precision CNC Radial Drill for H-Beam Processing
Model.		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Width (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1pc
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW

Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
