Basic Info.
Transmission System
Chain Drive
Brake Type
Front Drum Brake, Rear Disk Brake
Specification
1120*710*730MM
Production Capacity
3000 Piece/Pieces Per Month
Packaging & Delivery
Package Size
103.00cm * 62.00cm * 52.00cm
Package Gross Weight
75.000kg
Product Description

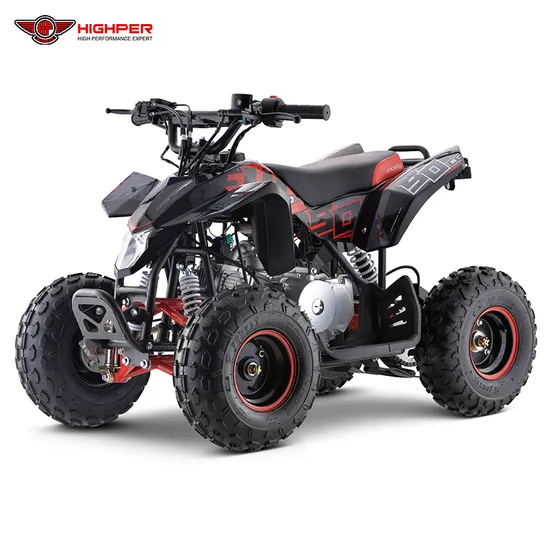

https://hpmoto.en.made-in-china.com/product-group/bqMaCrwoEukm/GASOLINE-ATVS-catalog-1.html Detailed Photos
Product Parameters
| ENGINE: | 70CC/110CC |
| BATTERY: | / |
| TRANSMISSION: | AUTOMATIC |
| FRAME MATERIAL: | STEEL |
| FINAL DRIVE: | CHAIN DRIVE |
| WHEELS: | 145*70-6 |
| FRONT&REAR BRAKE SYSTEM: | FRONT DRUM BRAKE, REAR DISC BRAKE |
| FRONT&REAR SUSPENSION: | DOUBLE A-ARM MONO SHOCK |
| FRONT LIGHT: | 12V4AH |
| REAR LIGHT: | 12V4AH |
| DISPLAY: | / |
| OPTIONAL: | / |
| MAX SPEED: | 60KM/H |
| RANGE PER CHARGE: | / |
| MAX LOAD CAPACITY: | 95KGS |
| SEAT HEIGHT: | 580MM |
| WHEELBASE: | 780MM |
| MIN GROUND CLEARANCE: | 120MM |
| GROSS WEIGHT: | 75KGS |
| NET WEIGHT: | 68KGS |
| BIKE SIZE: | 1120*710*730MM |
| PACKING SIZE: | 1030*620*520MM |
| QTY/CONTAINER 20FT/40HQ: | 200PCS |
Company Profile
1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
A: No. All bikes are to be produced according to your order including samples.
3. Q: What's the delivery time?
A: It usually takes about 25 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.
4. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. Highper People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
6. Q:What's your warranty terms?
A:We offer different warranty time for different products. Please contact with us for detailed warranty terms.
7. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. You will see that we have never got any complaint from our customers.
>>
