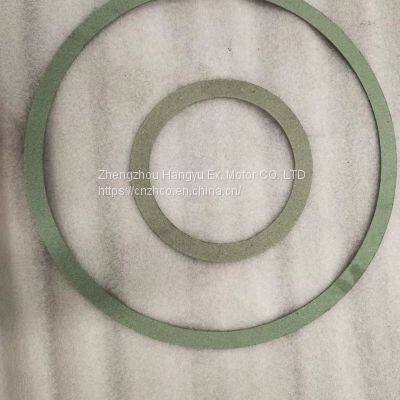

Repair gasket kits for Mission Magnum 2500 supreme Centrifugal Pump shim overhaul package for Sand pump spare parts
We supply Mission centrifugal pump Magnum and parts ,100% interchangeable for below model:
Mission Centrifugal pumps Magnum 3x2x13
Mission Centrifugal pumps Magnum 4x3x13
Mission Centrifugal pumps Magnum 5x4x14
Mission Centrifugal pumps Magnum 6x5x11
Mission Centrifugal pumps Magnum 6x5x14
Mission Centrifugal pumps Magnum 8x6x11
Mission Centrifugal pumps Magnum 8x6x14
Product Description
| ITEM | QTY
per
pump | PART No. | Stock No. | DESCRIPTION |
| 1* | 1 | See below |
| Casing |
| 1A | 1 | 10399-46-1 | 648403012 | Gasket,casing |
| 1B | 12 | 3932-61 | 648402014 | Nut,casing |
| 1C | 12 | 3862-76 | 648401115 | Stud,casing |
| 1D | 1 | 8505-04-01 | 86485503 | Plug,Casing Drain |
| 1E | 1 | 8505-04-01 | 646400507 | Plug,flush line |
| 2* | 1 | See below |
| Impeller |
| 2A | 1 | 19110-72 | 648405082 | Seal,impeller |
| 2B | 1 | 7300239 | 7300239 | Washer,impeller |
| 2C | 1 | 7415648 | 7415648 | Bolt,impeler lock |
| 3*# | 1 | 22223-01-30 | 641116157 | Stuffing box,mech.seal |
| 3*& | 1 | 20614-01-30 | 643365042 | Stuffing box,packed |
| 3A | 2 | 3861-117 | 648401016 | Bolt,stuffing box |
| 3B& | 1 | 19368-01 | 601499403 | Grease fitting |
| 4 | 1 | 20622A | 641103338 | Gland assy,packing |
| 5A# | 1 | 22451-1 | 648414308 | Seal,mechanical |
| 5A~ | 3 | 25014-04M-R | 661007005 | Packing,Shaft-M.S.Backup |
| 6 | 2 | B3701A | 601102494 | Bolt assy,gland |
| 7 | 1 | 20612-02-33 | 646490557 | Shaft |
| 7A# | 1 | 20943-21 | 641102182 | Sleeve,Shaft (M.S.Pump) |
| 7A& | 1 | 20613-21G-7A | 641102181 | Sleeve,Shaft (Pack Pump) |
| 7B | 1 | 4372-5-21 | 601212392 | Key,shaft |
| 7C | 1 | 23444-01-72 | 648415156 | Seal,shaft sleeve |
| 8 | 1 | 22210-1A | 641116108 | Deflector assembly |
| 9 | 1 | 20618-12-1 | 644302499 | Frame,grease lubricated
|
>>
