US$29,600.00-39,600.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Rack and Pinion
Control Method
Servo Motor
Numerical Control
CNC/MNC
Processing Precision
0.09~0.1(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Table Design
T-Slot Vacuum Table
Spindle
9.5kw / Italy /Atc
Reducer
Taiwan Planetary Reducer
Rack
German Henrion Helical Racks
Inverter
11kw Delta Inverter
Transport Package
Plywod Box
Specification
1300mm*2500mm
Production Capacity
300 Sets/Year
Product Description

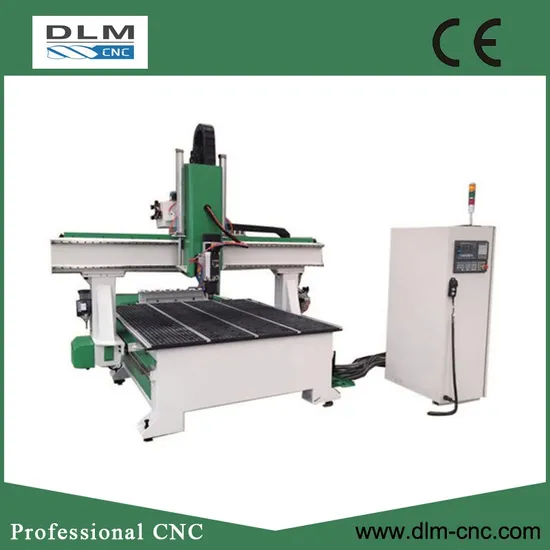

Four Axis CNC Machining Center
CNC MACHINE APPLICATIONS :
* spindle can work in verve surface ,which can rotary 180 degree
* Sign and graphics fabrication
* 3 dimensional (3D) machining (sign, plastics, wood, molds, etc.)
* Cabinet making
* Furniture, general woodworking manufacturing
* Store fixture, display manufacturing
* Sheet plastic fabrication
* Solid surface machining
* Non-ferrous sheet metal machining (aluminium, brass,copper, zinc)
* Composite machining (graphite, phenolic, Kevlar, etc.)
Special Features :
* Powerful Italian HSD automatic tool change spindle with linear tool
change positioned at the end of the working table - 8 Tools.
* Heat treated and stress relieved heavy duty steel frame.
* vacuum zones manually controlled.
* 12 Months free after sale support
* one powerful vacuum pump .
* syntec large screen controller in free standing control cabinet.
* Safety enclosure around spindle motor with swarf exhaust hood.
* Machine supplied with 8 x ISO30 chucks with ER32 collets.
| Model | WA-48 |
| X-Y-Z axis working area | 1,300 x 2,550 x 300mm |
| Machine size | 3120 x 2053 x 1800mm |
| Resolutions | 0.025mm |
| X-Y movement | Rack and pinion, gear drive/Taiwan |
| Z movement | Ball screw drive/Taiwan |
| Guide | Linear 20 square/Taiwan |
| Max. speed | 60,000mm/min |
| Max. cutting speed | 30,000mm/min |
Spindle | 9kw Italy HSD (ISO30, fan cooling ATC) ±180 degree |
| Spindle speed | 24,000rpm |
| Inverter power | 11kw |
| Drive motors | servo |
| Working voltage | AC380V/50-60Hz, 3-phase |
| Command code | G code |
| Computer interface | USB 2.2 |
| Collet | ER32-12.7mm,6mm,3.175mm |
| Software | Alphacam |
| Controls | SYNTEC 6MB |
| Packing dimensions | 3720 x 2180 x 2150mm,1600kgs |
Standard equipment included | 1. Auto tool surface sensor 2. Manual oil lubrication system 3. Dust hood 4. T-slot vacuum table 5. Tool holders |
>>
