Basket Mill for Pigment Paste

US$9,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
EBM
Pin Material
High Chrome Steel
Grinding Media
Zirconium Bead
Power
4kw-75kw
Warranty
1 Year
Cooling System
Cooling Jacket
Lifting
Hydraulic
Bead Size
1mm-2.4mm
OEM/ODM
Acceptable
Transport Package
Wooden Case
Specification
EBM-4----EBM-75
Trademark
ELE
Origin
Shanghai, China
HS Code
879820090
Production Capacity
30-3000L

Product Description

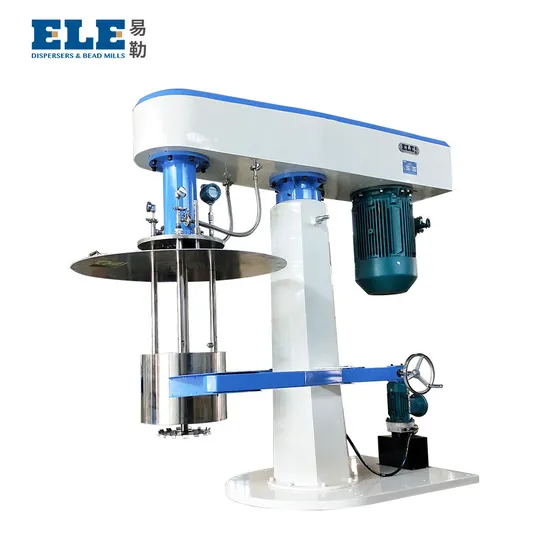

Basket Mill :
Model No. Basket Volume(L) Motor Power(KW) Speed(rpm) Flow(L) Media Dimension(mm) Lifting height(mm)
EBM-4 3.6 4 0-3000 <120 1.8-2.4 800
EBW-7.5 4.9 7.5 0-1500 <200 1.8-2.4 900
EBW-11 6.6 11 0-1500 <260 1.8-2.4 900
EBW-18.5 17.2 18.5 0-1500 <500 1.8-2.4 1100
EBW-30 32.3 30 0-1500 <1200 1.8-2.4 1100
EBW-45 52.3 45 0-1500 <2000 1.8-2.4 1600

Features
1, no need using of pump, pipe, valve, other tank, and thus no leftover, large output
2, low cost, high efficiency, short processing time
3, one machine can process kinds of materials, users can change to produce different products and colors.
4, flexible operation, one worker can operate several basket dispersing mills.
5, hydraulic lifting
