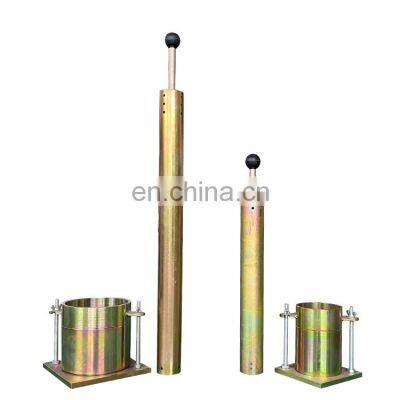

Standard Modified Proctor Moulds And Rammers For Soil
Product Details
Product ApplicationMoulds and rammers are used for determining the relationship between the moisture content
and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.
Standard
| Hammer Type
| Internal Dia
(mm)
| Body Height (mm)
| Hammer Weight (kgs)
| Drop (mm)
|
ASTM
(America)
| Light
| ∅101.6
| 116.4
| 2.5
| 305
|
| Heavy
| ∅152.4
| 177.8
| 4.54
| 457
|
| Hammer Type
| Internal Dia
(mm)
| Body Height (mm)
| Hammer Weight (kgs)
| Drop (mm)
|
BS
(British)
| Light
| ∅101.6
| 127
| 2.5
| 305
|
| Heavy
| ∅152.4
| 127
| 4.54
| 457
|
| Hammer Type
| Internal Dia
(mm)
| Body Height (mm)
| Hammer Weight (kgs)
| Drop (mm)
|
EN
(Europe)
| Light
| ∅100
| 127
| 2.5
| 300
|
| Heavy
| ∅152
| 127
| 4.5
| 450
|
| Hammer Type
| Internal Dia
(mm)
| Body Height (mm)
| Hammer Weight (kgs)
| Drop (mm)
|
GB
(China)
| Light
| ∅102
| 116
| 2.5
| 305
|
| Heavy
| ∅152
| 116
| 4.5
| 457
|
Detailed Images
Company information
Cangzhou Lovely Group Co., Ltd is specialized in Nondestructive Test Instrument and Material testing machine over 10 years,Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide.
Cangzhou Lovely Group Co.,Ltd. insisted on "Integrity-based, guests supremacy". Welcome customers from all over the world to visit us for business negotiation!
The Foreign Trade Department of Cangzhou Lovely Group Co.,Ltd. was established.
According to customers' requirements, there has the machine---CZY5 Rebar Weighing and Length Measuring Instrument
Independent research and development and production of GW50 Automatic Rebar Bending Testing Machine.
L800 Integrated Floor Thickness Gauge RBL+ Rebar Detector goes public.
New product-- U900 Series Non-Metallic Ultrasonic Detector.
HYE-2000 Series Microcomputer Servo Compression Testing Machine: Pad adjustment, Manual screw adjustment, Electric screw adjustment.
WAW-B Micro Electromechanical Liquid Servo Universal Testing Machine.
EV2 Static Deformation ModulusTester; EVD Dynamic Deformation Modulus Tester. ---Patented Product
The factory was established, begin to produce more than 20 types instrument.
Our Services
Pre-sale service* OEM customized service
* Equipment installation and calibration * Free technical training for visiting factories
After-sales service
* 24-hour Online consulting support.
* Training how to instal use the machine. * the professional after-sale service team will provide perfect technical support
Packing & Delivery
We promise the delivey in time. And we support customize products for customers. Such as the voltage and package etc. All wooden box are suitable for exporting.
FAQ
Q1:Are you a factory or trading company? A:We are a factory specializing in manufacturinf all kinds of tester.
Q2:Where is the loading port?
A:Qingdao port or tianjin port.
Q3:What’s the MOQ of the product?
A:Different item has different MOQ.normally one stand is preferred.
Q4:What certificates do you have?
A:We have ISO 9001.
Q5:Do you have an OEM service?
A:Yes.We can provide OEM and ODM services as your requirements.
Q6:How long is the production cycle after ordering?
A:General it is about 7-20 days.
Q7:What is the payment method?
A:T/T payment is preferred and other payment terms is accepted.
Q8: Could you support to customize?
A: Yes, we could customize the package and Voltage as request.
