US$30.00-33.00
|
50 Meters
(MOQ)
|
Basic Info.
Beads Per Meter
37/40 Beads/ Meter
Connection
Rubber/Plastic/Rubber+Spring
Usage
Wire Sawing Granite and Other Stones
Transport Package
Carton, Pallet
Specification
7.2mm-11.5mm
Production Capacity
5000 Meters Per Month
Product Description

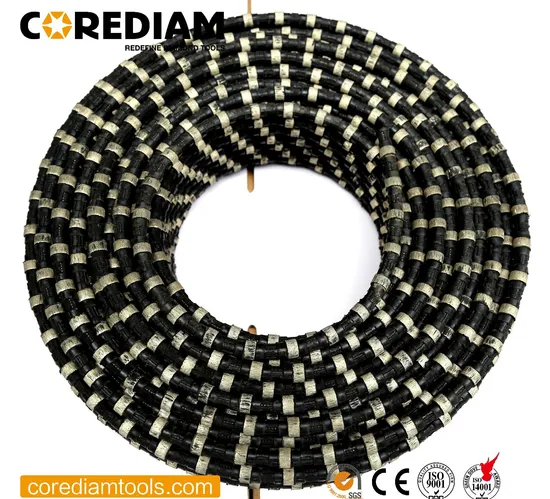

1. Diamond wire introduction
Diamond wire saw is undoubtedly a revolution in stone quarryting, which is made of sinter hot-pressed diamond beads with rubber injection
Main diameters for granite quarrying is 11.0mm, 11.5mm, and the minium diameter can be 7.2mm.
It is widely used in flexible granite quarrying, block shaping.
2. Specification
| Item No. | Bead Diameter | Beads No. /Meter | Fixing |
| SGWS07237 | 7.2mm | 37 | Rubber/Plastic/Rubber+Spring |
| SGWS08537 | 8.5mm | 37 | Rubber/Plastic/Rubber+Spring |
| SGWS09037 | 9mm | 37 | Rubber/Plastic/Rubber+Spring |
| SGWS10540 | 10.5mm | 40 | Rubber/Plastic/Rubber+Spring |
| SGWS11040 | 11.0mm | 40 | Rubber/Plastic/Rubber+Spring |
| SGWS11540 | 11.5mm | 40 | Rubber/Plastic/Rubber+Spring |
3. Features&cutting performance
High quarrying efficiency, safety and environmental operation ;
High capacity with regular blocks, no internal injuries, can produce large-size blocks;
Low cost quarrying.
Here are some data from stone quarry.
| Cutting materials | Line speed m/s | Cutting speed sqm/h | Wire life sqm/m |
| Granite Class 3 | 20-24 | 12-18 | 12-15 |
| Granite Class 4 | 18-22 | 5-8 | 6-10 |
4. Delivery time
1 week for samples
2-3 weeks for batch orders.
5.Package and loading
6.Corediam introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world by technology innovation.
>>
