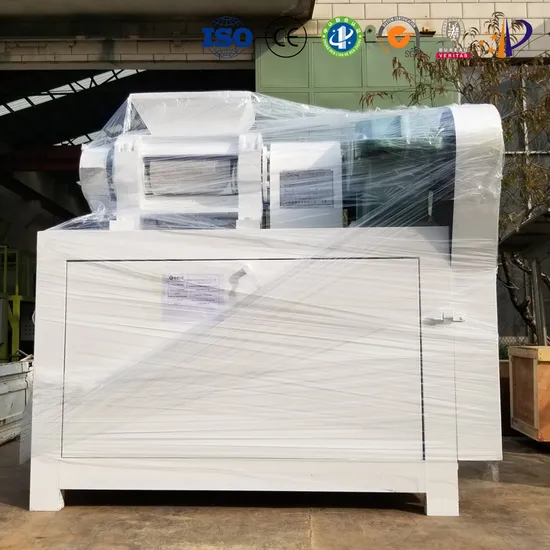

40 Years China Famous Tongda Brand Fertilizer Double Roller Press Granulator Granulation Machine

Product Description

40 Years China Famous Tongda Brand Fertilizer Double Roller Press Granulator Granulation Machine

Product Introduction
This fertilizer granulator is a new type of granulator for organic fertilizer after many improvements on the basis of the traditional granulator for roller extrusion.It has advanced technology, reasonable design, compact structure, novel and practical, low energy consumption. It can form a small production line with the corresponding equipment. It can form a certain capacity of continuous and mechanized production. Adopting healthy formula, no need for drying, normal temperature production, product rolling forming, make product quality meet the technical requirements of compound fertilizer, is used for the production of various crops high, medium and low concentration of special compound fertilizer and compound fertilizer industry energy saving and consumption reduction replacement products.
Performance Characteristics
1.The kinetic energy transfer is increased to five slots triangle belt, which fully transfers the motor power and reduces the kinetic energy loss.
2.The reducer adopts the independent research and development design of our company, with high transmission efficiency and stable kinetic energy.
3.Design the feeding and stirring mechanism to ensure that the material can enter the roller die evenly and prevent the feeding mouth from blocking.
4.Both sides of the lower end of the roller skin mold are equipped with automatic cleaning scraper to prevent materials from sticking to the roller skin.
Working Principle
This series of roller granulation belongs to extrusion sliding model, whose working principle is: the belt and belt pulley are driven by an electric motor, and transmitted to the drive shaft by reducer, and work in the same direction through the open gear and the passive shaft.The material is added from the feed hopper, extruded by the roller, demoded and pelleted, and passed through a pair of chains to the crushing screen studio, where the finished product pellets (balls) are screened and separated, and then the material is returned and mixed with new materials for granulation.With the continuous rotation of the motor and the continuous entry of materials, mass production can be realized.
Main Technical Parameters:

	Model		Power (kw)		Granule Diameter (mm)		Roller Sheet Size (mm)		Dimensions (mm)
	TDJZ-1T		15		3-10		150*220		1450*800*1450
	TDJZ-1.5T		22		3-10		150*300		1450*850*1500
	TDJZ-2T		30		3-10		185*300		1630*850*1650
	TDJZ-3T		37		3-10		300*300		1850*1100*2050

---
