High Regulation and Low Losses with Efficient Medium Voltage Transformer

Product Description

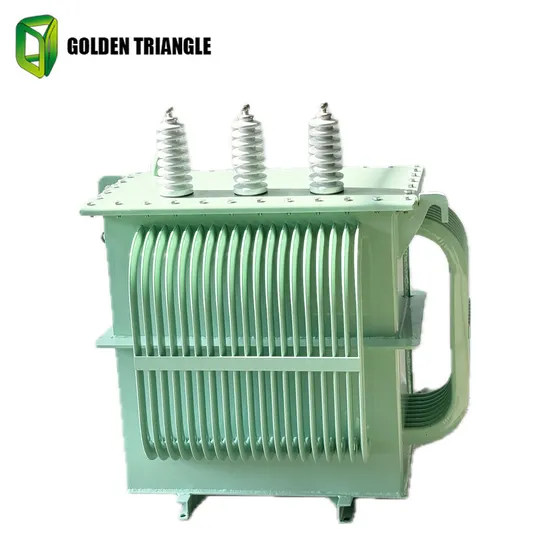

Product Description S9-M(30-2500)/10 3 Phase Oil-Immersed Distribution Transformer

Rated capacity(kVA)	High voltage(kV)	Tap range	Low voltage(kV)	connected group label	No-load loss(w)	Load loss (75ºC)(W)	No-load current(%)
30	6 6.3 6.6 10 10.5 11	±2*2.5 ±5	0.4	Dyn11 Yyn0 Yzn11	80	630/600	1.5
50					100	910/870	1.3
63					110	1090/1040	1.2
80					130	1310/1250	1.2
100					150	1580/1500	1.1
125					170	1890/1800	1.1
160					200	2310/2200	1.0
200					240	2730/2600	1.0
250					290	3200/3050	0.9
315					340	3830/3650	0.9
400					410	4520/4300	0.8
500					480	5410/5150	0.8
630				Dyn11 Yyn0	570	6200	0.6
800					700	7500	0.6
1000					830	10300	0.6
1250					970	12000	0.5
1600					1170	14500	0.5
2000					1550	18300	0.4
2500					1830	21200	0.4

NOTICE!
Important: Please provide the following information before placing your order:
1. Type of prefabricated substation;
2. Transformer model and capacity requirements;
3. Main wiring scheme for high and low voltage circuits;
4. Specifications and parameters for any special electrical components needed;
5. Desired shell color;
6. Names, quantities, and any other requirements for spare parts and accessories;Company Profile
ABOUT OUR COMPANY
Golden Triangle Power Technology Co., Ltd. (stock name: Golden Triangle, stock code: 837424) was established in November 2009. We are an acclaimed enterprise dedicated to the innovation, production, marketing, and technical service of top-tier power products. Our impressive portfolio includes three-dimensional coil core transformers, amorphous alloy core transformers, amorphous three-dimensional coil core transformers, photovoltaic substations, energy storage equipment, high and low voltage switchgear, and European, American, and Chinese outdoor box substations, as well as intelligent substations. As a production-service-oriented company proficient in construction EPC, our advanced products serve a multitude of industries such as State Grid, Southern Power Grid, railways, mines, infrastructure, metallurgy, roads and bridges, and property management.
Golden Triangle has proudly achieved ISO9001:2015 quality management system certification, ISO14001:2015 environmental management system certification, ISO45001:2008 occupational health and safety management system certification, PCCC energy-saving product certification, national mandatory product 'CCC' certification, CQC China quality certification, and AAA credit rating certification, among others. Honored as a national high-tech enterprise, a provincial 'specialized, special and new' SME, and among the top 100 most promising scientific and technological enterprises in the province, we also hold the designation of a municipal green factory. Our company features a provincial high-tech enterprise R&D center, an academician workstation, a doctor innovation workstation, 3 invention patents, and 51 utility model patents.
Our products are featured in the 'Energy Saving and People Benefiting Project' and the 'Recommended Catalog of Energy Saving Electromechanical Equipment' by the Ministry of Industry and Information Technology, the Ministry of Finance, and the National Development and Reform Commission. Golden Triangle is the first enterprise in Wenzhou's power industry to receive direct subsidies from the Ministry of Finance for product sales. We've earned numerous accolades, including honorary titles for national industrial energy-saving technical equipment products and the first set of products in key fields of provincial equipment manufacturing. Additionally, the production standards of our flagship products like 'SCB13-RL solid triangle iron core dry-type transformer' and 'SBH16-RL solid triangle rolled iron core amorphous transformer' are recognized as 'Zhejiang manufacturing quality standards.' Our company has led the drafting of 10 standards, significantly contributing to energy conservation, emission reduction in China's power industry, and the advancement of green energy technology.
THE HONOR OF COMPANYIn today's fiercely competitive market with rapid technological advancements, we hold firm to our belief that 'quality is the enterprise's life.' By fully implementing the ISO9001:2000 international quality management system, Golden Triangle is dedicated to maintaining 'quality excellence, superior service, outstanding product quality, and continuous quality improvement.' This unwavering commitment ensures ultimate customer satisfaction. Our company was among the first to be included in the 'Energy Saving and Huimin Engineering Energy-Efficient Distribution Transformer' initiative by the National Development and Reform Commission, Ministry of Finance, and Ministry of Industry and Information.
