US$76,000.00-180,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Machining Process
Welded Molding Machine
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Machine Type
Batching Machine
Core Components
PLC, Gearbox, Mixer, Batch Station, Bucket Elevato
Product Name

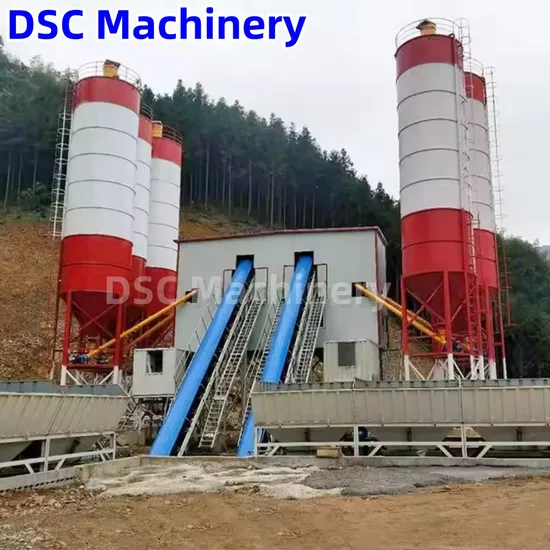

Ready Mixed Concrete Batching Plant
Keywords
Concrete Batching Plant
Concrete Mixer Type
Double Horizontal Shaft Forced Mixer
Function
Mixing Sand Stone
Transport Package
Bubble Wrap
Specification
1 CBM per hour
Product Description
| HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS100 | HZS120 | HZS150 | HZS180 |
| Discharging Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | 1500 | 2000 | 2000 | 2500 | 3000 |
| Charging Capacity(L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3200 | 3200 | 4000 | 4800 |
| Maximum Productivity(m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
| Charging Model | Skip Hopper | Skip Hopper | Skip Hopper | belt conveyor | Skip Hopper | belt conveyor | belt conveyor | belt conveyor | Skip Hopper | belt conveyor |
| Standard Discharging Height(m) | 1.5~3.8 | 2~4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 3.8~4.5 | 3.8~4.5 | 4.5 | 4.5 |
| Number of Species of Aggregate | 2~3 | 2~3 | 3~4 | 3~4 | 3~4 | 4 | 4 | 4 | 4 | 4 |
| Maximum Aggregate Size(mm) | ≤60mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤80mm | ≤120mm | ≤120mm | ≤150mm | ≤180mm |
| Cement/Powder Silo Capacity(set) | 1×100T | 2×100T | 3×100T | 3×100T | 3×100T | 3×100T | 4×100T or 200T | 4×100T or 200T | 4×200T | 4×200T |
| Mixing Cycle Time(s) | 72 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 30 | 30 |
| Total Installed Capacity(kw) | 60 | 65.5 | 85 | 100 | 145 | 164 | 188 | 210 | 230 | 288 |
1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .
2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 8 years.
3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.
4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.
>>
