ITEM | KDHM400J |
Travel on X-axis (Table: left/right) | 700 mm |
Travel on Y-axis (Spindle head: up/down) | 510 mm |
Travel on Z-axis (Column: forth/back) | 510 mm |
Table surface to spindle center | 60~570 mm |
Table center to spindle nose | 100~610 mm |
Table | |
Table (pallet) work surface area | 400× 400 mm |
Max. workpiece weight loadable on table | 500 kg |
Min. indexable angle of table | 1° |
Number of table | 1 |
APC changing time | 2.8S |
Spindle | |
Spindle speed | 6000 rpm |
Spindle inner taper | BT40 |
Spindle motor (30min/continuous rating) | 11/15 KW |
Feed | |
Rapid traverse rate X/Z | 24 m/min |
Feed motor X/Y/Z | 20/36/36 Nm |
Repeatability position accuracy | ≤0.006mm |

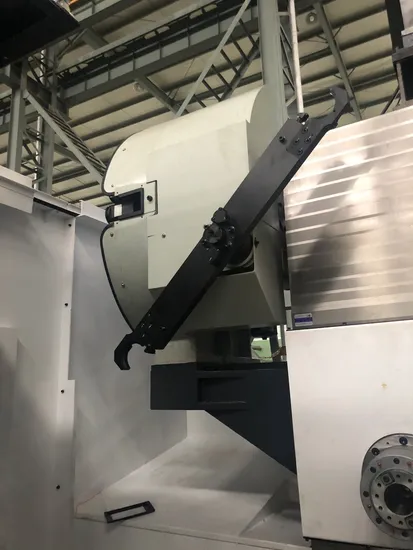

Automatic Tool Changer | 30 |
Max. Tool diameter | Ø 75(space Ø 125)mm |
Tool changing time (cut to cut) | 2.8S |
Other | |
| Machine overrall dimensions | 3950× 2500×3000 mm |
Total machine weight | 5800 kg |
