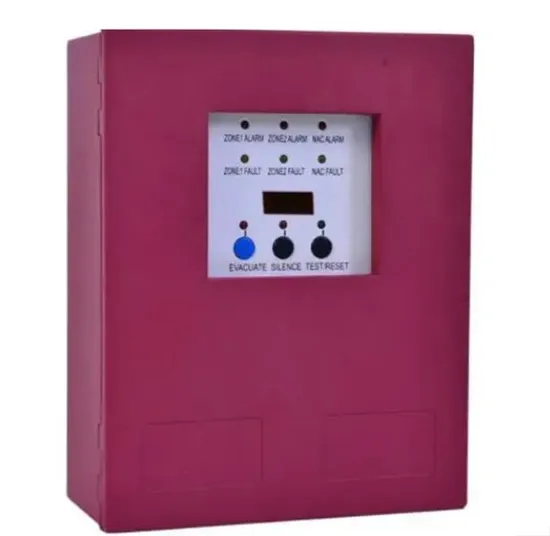

2 Zone Conventional Fire Alarm System Smoke Alarm Detector Controller for Fire Suppression
US$70.00
1-9 Pieces
US$60.60
10+ Pieces
Basic Info.
Model NO.
CK1000
Anti-Theft Alarm System Type
Sound and Light Alarm
Anti-Theft Alarm System-Wide
Smoke Detector
Anti-Theft Alarm System Distance
Common Detectors
Types of Smoke Detectors
Photoelectric Smoke Style
Connected
2 Zone
Installation
Wall Mounted
Application
Smoke Alarm System
Alarm Method
Smoke Alarm System
Transport Package
Carton
Specification
370mm*440mm*100mm
Trademark
XHA
Origin
China
HS Code
8531100000
Production Capacity
1000/Month
Product Description
Introduction The information provided in this manual covers the Master and Slave fire alarm control panel. The panel range is designed to meet the requirements of EN54 Parts 2 & 4. The fire alarm control panels ( 2 Zones) provide all of the sophisticated features required of a leading edge conventional fire alarm system along with the simple operation and efficient installation methods demanded by both installers and building users. A comprehensive range of auxiliary devices is available to operate with the fire control panels including optical, ionization, photoelectric, photoelectric-thermal and heat detectors. Each of the system components has been specifically designed to operate as part of the system. This provides assurance that the control panel, smoke detectors, interface devices and the ancillary components are all fully compatible with one another and that the full range of system functionality is supported by each device. Product Features 2 conventional input zones. 1 notification appliance circuits (NAC) with built-in synchronization for ANSI 3.41and Gentex. The panel comes with a 2 amp power supply. Dedicated alarm and trouble relays. 1 RS485 can be able to connect the other panel. Housed in a 205mm W x 258mm H x 81mm D metal enclosure. Enclosure supports two 12V, 4Ah backup batteries. The panel can be used independently or connect by RS485.
