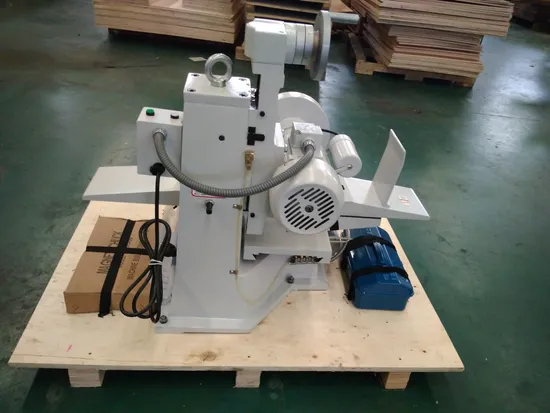

Mini Grinder Machine

Product Description

The surface grinding machine is designed to grind various horizontal and vertical surfaces of the workpieces and end faces of the grinding wheel. It can also grind various contoured workpieces with shaped wheel or craftsmanship apparatus.
Main features:1)Integrated grinding head of high quality, high rigidity and accuracy.
2)Small size, light weight, easy operation & maintenance.
3)Centralized lubrication for oil pump.
Standard configuration:Grinding wheel, grinding wheel adaptor, grinding wheel dresser, pad irons, tools, etc.
Special configuration:Stand, permanent magnetic chuck, precision flat vise.

SPECIFICATIONS	Metric	Inch
Longitudinal stroke	340mm	14
cross strock	170mm	7
vertical strock	210mm	8
Table size	152mm×304mm	6×12
Width of T-slot	1-12mm	1-0.47
Cross feed per graduation	0.02mm	0.001
Cross feed per round	2.54mm	0.1
Vertical feeds per graduation	0.025mm	0.001
Vertical feed per round	1.25mm	0.05
Roughness	1.6μm
Size fo grinding wheel	180mm×32mm×13mm
Power of motor	0.55kw
N. W. / G.W.of machine	210/258kg
N. W. / G.W.of stand	30/54kg
Overall dimension of machineL×W×H	930×780×730mm
Case dimension of machineL×W×H	1100×760×860mm
Case dimension of standL×W×H	750×580×630mm

Standard Configuration:
grinding wheel, grinding wheel adaptor,grinding wheel dresser, pad irons, tools, etc.
Special Configuration;
permanent magnetic chuck
precision flat vise
Stand
Product Details:




Packing and Delivery
Special parts:
company information
Shandong Linyi Jinxing Machine Tool Co., Ltd.was founded in 1965 and locates in Shandong Linyi high-new technology development zone. It is national high-new technology enterprise on patents in Shandong province. It owns provincial level high-tech R&D center.
It mainly deals with the development,manufacturing and sales of machine tools. It has the yearly capacity of manufacturing vertical machinning center,CNC milling machine,CNC lathe,common machine tool,multi-purpose machines etc.over ten thousands sets.
The company has passed through ISO9001 Quality System Certificate and owns self-operation right of import and export. some products have passed through CE certificate.Its products are sold widely at home and over more than 30 countries and districts abroad such as USA,Canada,Germany ,Italy,Hungary,Australia,South Africa,Korea and Japan,etc.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Technology support :
Professional after-sales service team: We can Provide Spare parts replacement and repair service
Competitive price: We can recommend the most suitable machine according to your budget and customer needs, and give you a favorable price.
OEM Accepted: We can produce design as your requied.please contact us.
We have strict quality control system.please believe our quality. MOQ: 1 set . Terms of Payment: T/T (30% in advance and delivery on 100%) If you have any questions ,please feel free to contact us. Shandong Linyi Jinxing Machine Tool Co.,Ltd. Amy Li

---
