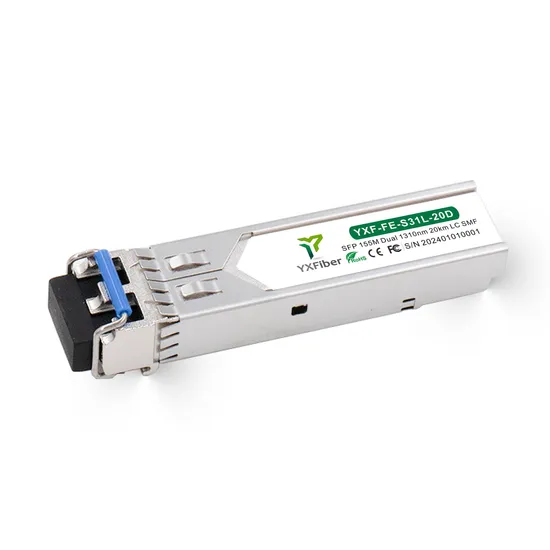

Original Yxfiber 155m 1310nm 20 Km LC SFP Double Mode Double Fiber

US$3.00-5.00 1 Piece (MOQ)

Basic Info.

Model NO.
YXF-FE-S31L-20D
Certification
CE, ISO, RoHS, GS
Condition
New
Operating Voltage
3.3V
Wavelength
1310nm
Interface
LC Duplex
Tx Power
-8~-15dBm
Max Data Rate
155m
Dom Support
Yes
Receiver Sensitivity
< -34dB
Max Cable Distance
80km
Optical Components
Fp/Pin
Form Type
SFP
Transport Package
10PCS/PVC 100PCS/Carton
Specification
0.03KG
Trademark
YXFiber
Origin
Wuhan
HS Code
8517706000
Production Capacity
5000pieces/Day

Product Description


SFP-155M-80KM 1310nm SFP Module Duplex LC DDM Features:
•Supports up to 155Mbps bit rates
•Duplex LC connector
•Hot-pluggable SFP footprint
•1310nm FP laser transmitter and PIN photo-detector
•Applicable for 80Km SMF connection
•Low power consumption, < 0.8W
•Digital Diagnostic Monitor Interface
•Compliant with SFP MSA and SFF-8472
•Very low EMI and excellent ESD protection
•Operating case temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C
Applications:
1.SDH STM-1, S-1.1,L-1.1, L-1.2
2.SONET OC-3 IR1,LR1,LR2
3.Other optical transmission systems
Product Description:
YXFiber SFP-155M-80KM Duplex The SFP transceivers are high performance, cost effective modules supporting 155Mbps data-rate and 20km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Functional Diagram:
Package Dimension:
Products Details:
Our Advantage:
Packing and Shipping
We support DHL/FedEx/UPS and other delivery methods
Q&A
Q: What kinds of custom choices are offered in YXFiber?
A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solutions for all need and specifications.
Q: Why should I trust YXFiber compatible transceivers?
A: Besides the price advantage, we have compared to branded transceivers, YXFiber compatible transceivers also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our transceivers are tested multiple times in mainstream original brand switches in our test center before shipped out.
Q: Can we use APC connectors on this?
A: Hi, as the default type is UPC, so it's only can be connected with UPC connectors. Thanks
Q: Once I place an order for my transceivers, how long will it take to receive them?
A: Normally you can receive the goods within 7 workdays
Q: Will using compatible optics in my equipment negatively affect my manufacturer's warranty?
A: No. Network equipment manufacturers do not require that you use only name-brand optics. In fact, when a product fault or defect occurs in the network, and the fault or defect is not attributable to the use of third-party optics, they will continue to provide support for the affected product under warranty or covered by their support program.
