Cdwo4 Scintillation Crystal with High Luminous Efficiency

Product Description

Products Description

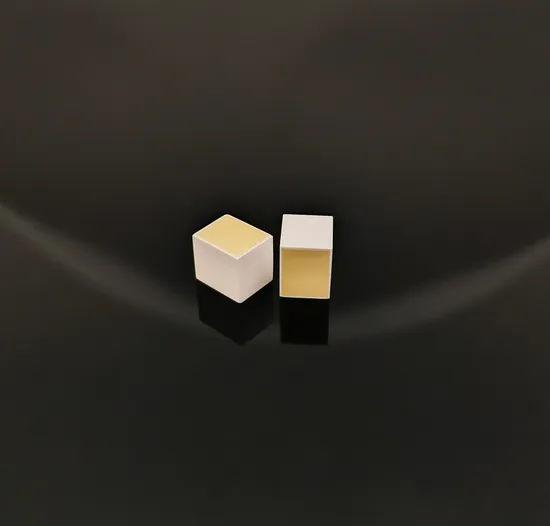

CdWO4 Cadmium tungstate (CdWO4) (CWO) is a monoclinic crystal with a wolframite structure and excellent comprehensive scintillation performance. Its peak scintillation wavelength is 480nm (emission range is 380-660nm), when subjected to γ When irradiated with X-rays, the efficiency is 13000 photons/MeV. CdWO4 crystal has the advantages of high luminescence efficiency, short afterglow time, large X-ray absorption coefficient, strong radiation damage resistance, and high material density, and is widely used in nuclear detection γ In fields such as cameras, X-CT, high-energy physics, and container detection, its combined application with B4C can form compact gamma ray and neutron radiation detectors. Meanwhile, CdWO4 crystals can be used to detect rare nuclear processes, such as double β Decay, other rare α Decay and β Decay.
Product Parameters

Crystal structure	Monoclinic
Lattice	a = 5.029 Å ; b = 5.859 Å ; c = 5.074 Å α=γ= 90°, β= 91.47°
Density	7.9(g/cm3)
Melting point	1325°C
Hardness	4- 4.5(mohs)
Coefficient of thermal expansion(10-6/K)	6.39 @<100>; 10.9 @<010>
Reflective index	2.3 @ 633nm ( room temperature )
Size	10x10mm , 5x5mm
Thickness	0.5mm , 1.0mm
Polishing	One side or two sides
Orientation	<010>,<100>
Orientation tolerance	±0.5°
Color	According to annealing conditions, there are yellow to colorless colors
Packaging	100 level clean bag, 1000 level ultra clean room
