304 Stainless Steel Wheat Salt Pulverizer Cereals Crusher Machine

Product Description

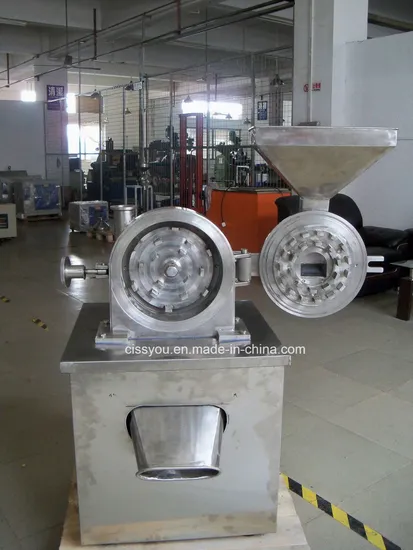

304 Stainless Steel Wheat salt Pulverizer Cereals Crusher machine
Wide use
1.Seed, HuaiShan, red jujube, hawthorn, medlar, poria cocos, radix polygoni multiflori, donkey-hide gelatin, frankincense, dodder, angelica, dangshen, astragalus, ganoderma lucidum, gastrodia elata, etc;
2.All kinds of flavor materials, including pepper, cloves, star anise, ginger, chili, pepper, amomum fruit, cinnamon, dried tangerine or orange peel, cardamom, cumin, garlic, angelica dahurica, and so on.
3.Chemical - non-corrosive soft ore.
How it works/working principle:
1.The machine using the activity of the relative movement of tooth plate and fixed tooth, the crushed material after the tooth impact, friction and material impact each other, and crushed.
2.Structure features:
3.Simple structure.And clean the crushing chamber
4.All stainless steel manufacturing is in line with the "GMP" requirements.
5.Stable running, crushing granularity.
6.The screen to control the particle size.
Notes:
1,According to your different material and also the mesh you want to crusher,the more fine powder you crush,the less capacity,hope you can understand.
2,For example,if you want to get 120mesh powder,the capacity will be 120kg\hour,if you want to get 12mesh powder,the capacity will be 1500kg\h.

Model	WSBX-20	WSBX-30	WSBX-40	WSBX-60
Capacity(kg/h)	30-150	50-300	80-800	120-1500
Speed of principal axis(r/min)	4500	3800	3400	2600
Size of input granules(mm)	< 6	< 10	< 12	< 15
Fineness of products (mesh)	12-120	12-120	12-120	12-120
Power(kw)	4	5.5	7.5	15
Weight(kg)	250	320	450	600
Overall size (L× W× H) (mm)	550× 600 × 1250	600× 750 × 1450	750× 900 × 1550	950× 1000 × 1850

---
