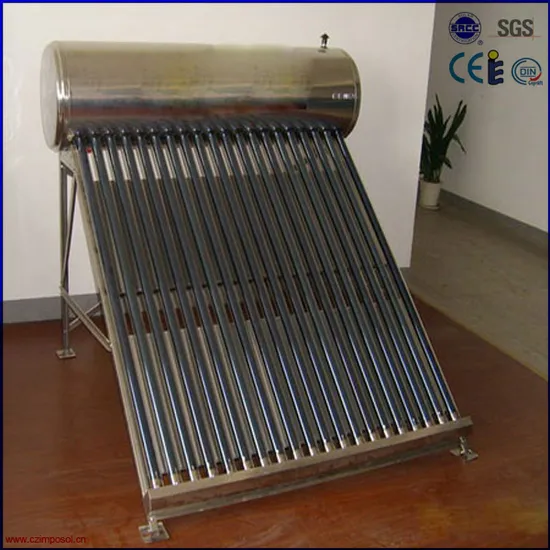

Vacuum Tube Low Pressure Solar Energy Heater

Product Description

YuanMeng series is non-pressurized solar water heater with galvanized steel or colourful steel outer tank and support.
Specifications:
1. Outer tank: Colourful steel or galvanized steel
2. Inner tank: SUS304-2B or 316 food-grade stainless steel thickness≥ 0.4
3. Sealing Ring: Excellenrt Silica gel material. Life is twice longer than common Silica gel.
4. Vacuum tuber: High-efficient vacuum tube
*High-Efficient heat-collection function: New generation of vacuum tubes, use molecular nanotechnology, greatly enhance heat-absorption by 20 percent, higher water temperatures.
*Adopts the international advanced film-coating technology, solar thermal conversion rates extremely high, absorbing heat even if the cloud weather.
*Vacuum tube strictly choose high-borosilicate glass 3.3 so that it has low coefficient of thermal expansion and higher intensity. Hail-resistance: 25mm
5. Insulation: 55mm polyurethane keep heating do with aging the cell is small and uniform reasonable density excellent insulation
6. Frame: Thicker galvanized steel, Anti-corrosive. And Anti-ultraviolet, installed in the slope and flat place freely. Strengthen hail-resistance. Angle: 20-80 degree. Through oxidation process. It increase wind resistance., life is longer than common frame. Beautiful appearance.
7. Automatic operation: Digital controller shows water temperature and water lever, water loading automatically, heating automatically, controlling automatically.

Model	Ligthing(m2)	Vacuum Tube	No.	Supply hotwater(L/D)	20/40"container
IPYM420-1500/47-12	1.26	Ø47mm 1500mm	12	70	80/195
IPYM420-1500/47-18	1.80	Ø47mm 1500mm	18	100	58/135
IPYM420-1500/47-24	2.49	Ø47mm 1500mm	24	130	46/108
IPYM420-1500/47-30	3.15	Ø47mm 1500mm	30	160	73/186
IPYM470-1500/47-12	1.26	Ø47mm 1500mm	12	90	68/166
IPYM470-1500/47-18	1.80	Ø47mm 1500mm	18	130	52/126
IPYM470-1500/47-24	2.49	Ø47mm 1500mm	24	168	41/98
IPYM470-1500/47-30	3.15	Ø47mm 1500mm	30	210	32/80
IPYM470-1800/58-12	1.68	Ø58mm 1800mm	12	100	56/136
IPYM470-1800/58-18	2.57	Ø58mm 1800mm	18	150	38/95
IPYM470-1800/58-24	3.40	Ø58mm 1800mm	24	200	32/76
IPYM470-1800/58-30	4.32	Ø58mm 1800mm	30	250	26/63

---
